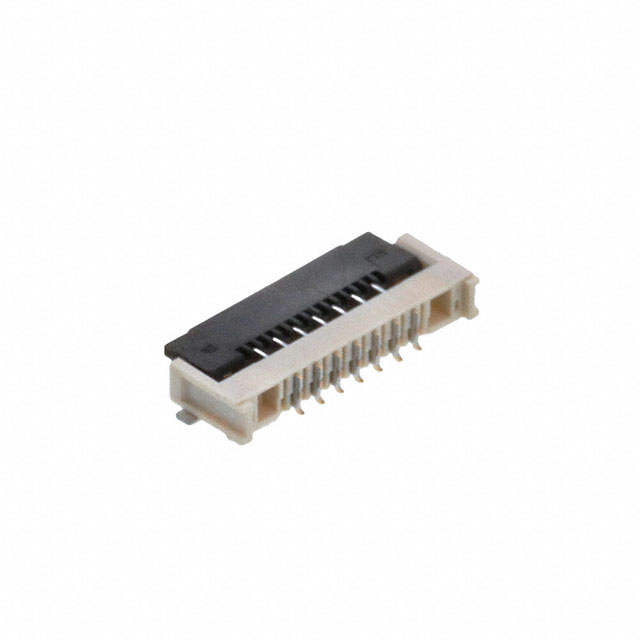

2005280070
Or copy the link below:
- Mfr.Part #
- 2005280070
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.0 FPC ZIF BTM CONT EMBT PKG 7C
- Stock
- 19,200
- In Stock ：
- 19,200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Number of Positions :
- 7
- Material Flammability Rating :
- UL94 V-0
- Actuator Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Current Rating (Amps) :
- 0.5A per Contact
- Contact Finish Thickness :
- 1.97μin 0.050μm
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Cable End Type :
- Straight, Tabbed
- Contact Finish :
- Gold
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2016
- Locking Feature :
- Flip Lock
- ECCN Code :
- EAR99
- Housing Color :
- Beige
- FFC, FCB Thickness :
- 0.30mm
- Pitch :
- 0.039 1.00mm
- Height Above Board :
- 0.075 1.90mm
- Series :
- Easy-On FD19 200528
- Termination :
- Solder
- Pbfree Code :
- yes
- Mating Cycles :
- 25
- Factory Lead Time :
- 21 Weeks
- Mounting Type :
- Surface Mount, Right Angle
- Connector/Contact Type :
- Contacts, Bottom
- Flat Flex Type :
- FFC, FPC
- Contact Material :
- Phosphor Bronze
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 2005280070
2005280070 Documents
Easy-On FD19 200528 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.039 1.00mm Solder 7 Positions Surface Mount, Right Angle Gold -40°C~105°C 0.5A per Contact
2005280070 Overview
There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the Easy-On FD19 200528 Series.In many ways, its Solder Retention, Zero Insertion Force (ZIF) feature makes it more powerful.In this case, the device operates at -40°C~105°C Operating Temperature.
2005280070 Features
Easy-On FD19 200528 series
2005280070 Applications
There are a lot of Molex
2005280070 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
