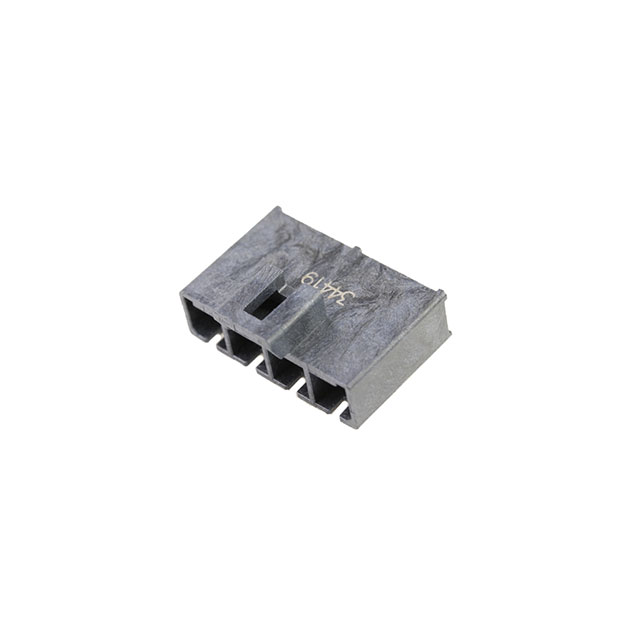

2002411224
Or copy the link below:
- Mfr.Part #
- 2002411224
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 5.7MM
- Stock
- 499
- In Stock ：
- 499
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Fastening Type :
- Latch Holder
- Mounting Type :
- Through Hole, Right Angle
- Termination :
- Solder
- Number of Positions :
- 4
- Shrouding :
- Shrouded - 4 Wall
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Factory Lead Time :
- 13 Weeks
- Connector Type :
- Header
- Series :
- Mega-Fit 20024
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Feature :
- Board Guide, Glow Wire Compliant
- Contact Type :
- Male Pin
- Number of Rows :
- 1
- Insulation Height :
- 0.437 11.10mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Pitch - Mating :
- 0.224 5.70mm
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Material :
- Copper
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish - Post :
- Tin
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Finish - Mating :
- Gold
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 600VAC/DC
- Operating Temperature :
- -40°C~120°C
- Datasheets
- 2002411224
Mega-Fit 20024 Series 1-Row Header Solder Copper Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP) 4-Position Board to Cable/Wire 0.437 11.10mm Height
2002411224 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.There is a product in the Mega-Fit 20024 Series.There are a number of advantages to its Board Guide, Glow Wire Compliant feature.As a result, the device runs at -40°C~120°C Operating Temperature.
2002411224 Features
Mega-Fit 20024 series
2002411224 Applications
There are a lot of Molex
2002411224 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
