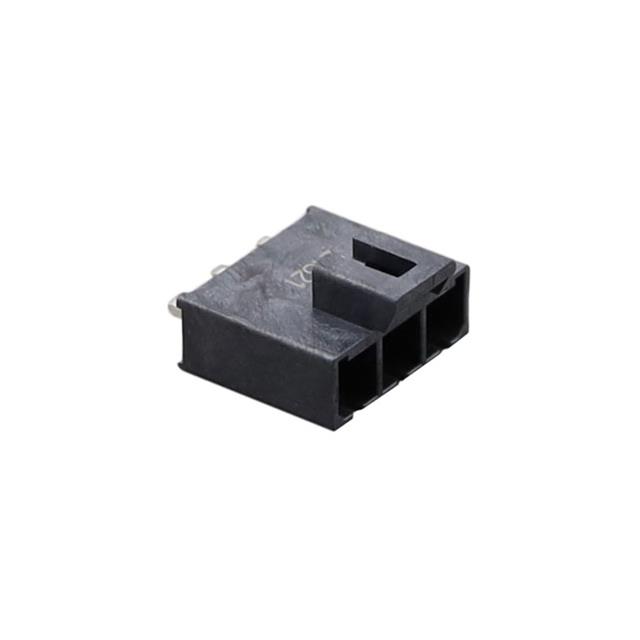

2002411133
Or copy the link below:
- Mfr.Part #
- 2002411133
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- MEGA-FIT VT SR TH HDR 30"GOLD 3C
- Stock
- 1,914
- In Stock ：
- 1,914
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Applications :
- -
- Current Rating (Amps) :
- Varies by Wire Gauge
- Base Product Number :
- 200241
- Row Spacing - Mating :
- -
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Number of Positions :
- 3 Position
- Features :
- Board Guide, Glow Wire Compliant
- Contact Material :
- COPPER ALLOY
- Style :
- Board to Cable/Wire
- Type :
- Power
- Fastening Type :
- Latch Holder
- Insulation Color :
- Black
- Contact Shape :
- Square
- RoHS :
- Details
- Series :
- 200241
- Tradename :
- Mega-Fit
- Package :
- Bulk
- Ingress Protection :
- -
- Mated Stacking Heights :
- -
- Number of Rows :
- 1 Row
- Voltage Rating :
- 600 VAC/DC
- Row Spacing :
- -
- Contact Type :
- -
- Contact Finish Thickness - Post :
- 100.0µin (2.54µm)
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.689 (17.50mm)
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Mounting Type :
- Through Hole
- Contact Finish - Mating :
- Gold
- Contact Length - Post :
- 0.127 (3.23mm)
- Current Rating :
- 23.5 A
- Contact Finish Thickness - Mating :
- 3.00µin (0.076µm)
- IP Rating :
- -
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Housing Gender :
- -
- Operating Temperature :
- -40°C ~ 120°C
- Overall Contact Length :
- -
- Contact Finish - Post :
- Tin
- Connector Type :
- Header
- Mounting Angle :
- Straight
- Pitch - Mating :
- 0.224 (5.70mm)
- Pitch :
- 5.7 mm
- Termination Style :
- Solder Pin
- Contact Gender :
- Pin (Male)
- Product :
- Headers
- Contact Plating :
- Gold
- Flammability Rating :
- UL 94 V-0
- Mounting Style :
- Mounting Peg
- Housing Color :
- Black
- Contact Length - Mating :
- -
- Shrouding :
- Shrouded - 4 Wall
- Product Status :
- Active
- Datasheets
- 2002411133
2002411133 Documents
1 Row Rows Header 3 Position Positions Through Hole - 200241 Liquid Crystal Polymer (LCP)
200241-1133 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A product of the 200241 Series, it belongs to the range of products of that series.
200241-1133 Features
200241 series
200241-1133 Applications
There are a lot of Molex
200241-1133 Rectangular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
