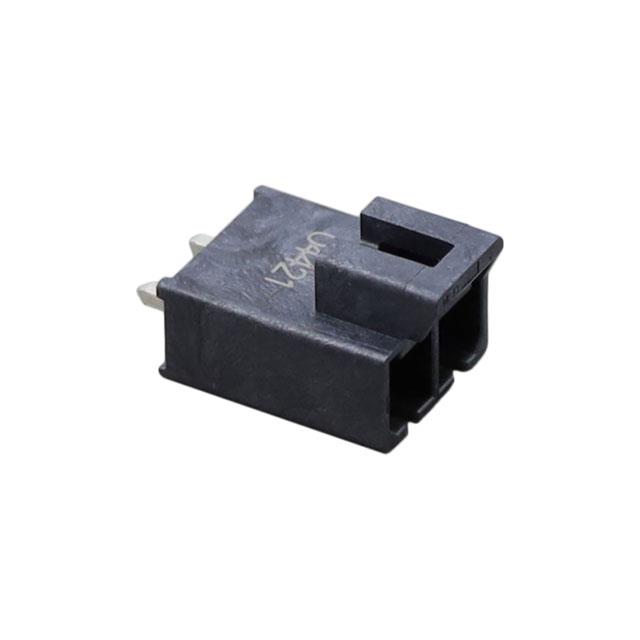

2002411132
Or copy the link below:
- Mfr.Part #
- 2002411132
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- MEGA-FIT VT SR TH HDR 30"GOLD 2C
- Stock
- 201
- In Stock ：
- 201
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 4 Wall
- Current Rating (Amps) :
- Varies by Wire Gauge
- Contact Type :
- -
- Flammability Rating :
- UL 94 V-0
- Number of Positions Loaded :
- All
- Current Rating :
- 23.5 A
- Housing Gender :
- -
- Number of Positions :
- 2 Position
- Contact Material :
- COPPER ALLOY
- Contact Shape :
- Square
- IP Rating :
- -
- Pitch - Mating :
- 0.224 (5.70mm)
- Termination :
- Solder
- Row Spacing - Mating :
- -
- Series :
- 200241
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Length - Mating :
- -
- Type :
- SHROUDED
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.689 (17.50mm)
- RoHS :
- Details
- Contact Gender :
- Pin (Male)
- Contact Finish Thickness - Post :
- 100.0µin (2.54µm)
- Contact Length - Post :
- 0.127 (3.23mm)
- Housing Color :
- Black
- Features :
- Board Guide, Glow Wire Compliant
- Package :
- Bulk
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Overall Contact Length :
- -
- Contact Plating :
- Gold
- Applications :
- -
- Voltage Rating :
- 600 VAC/DC
- Termination Style :
- Solder Pin
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Mating :
- 3.00µin (0.076µm)
- Contact Finish - Post :
- Tin
- Product :
- Headers
- Mated Stacking Heights :
- -
- Operating Temperature :
- -40°C ~ 120°C
- Number of Rows :
- 1 Row
- Connector Type :
- Header
- Insulation Color :
- Black
- Mounting Angle :
- Straight
- Minimum Operating Temperature :
- - 40 C
- Ingress Protection :
- -
- Mounting Type :
- Through Hole
- Application :
- Power, Wire-to-Board
- Maximum Operating Temperature :
- + 105 C
- Base Product Number :
- 200241
- Pitch :
- 5.7 mm
- Tradename :
- Mega-Fit
- Product Status :
- Active
- Material Flammability Rating :
- UL94 V-0
- Mounting Style :
- Through Hole
- Fastening Type :
- Latch Holder
- Datasheets
- 2002411132
2002411132 Documents
1 Row Rows Header 2 Position Positions Through Hole - 200241 Liquid Crystal Polymer (LCP)
200241-1132 Overview
A Header package is included with it.Its mounting type is Through Hole.It is part of the 200241 Series of products.
200241-1132 Features
200241 series
200241-1132 Applications
There are a lot of Molex
200241-1132 Rectangular Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
