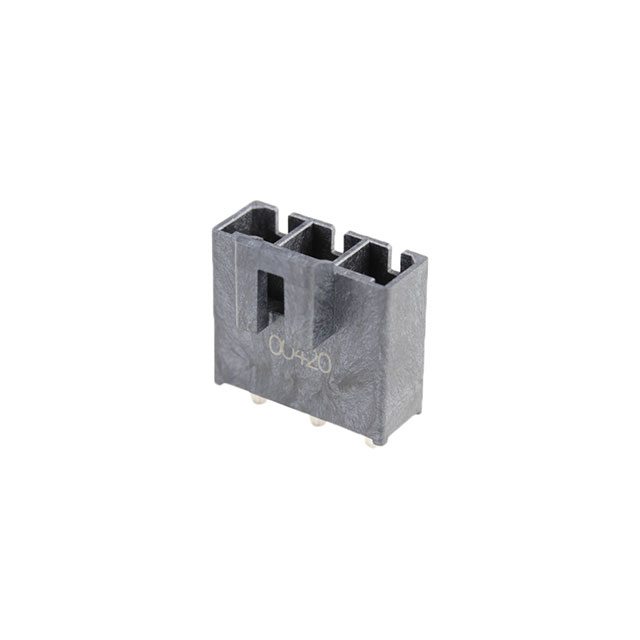

2002411123
Or copy the link below:
- Mfr.Part #
- 2002411123
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 5.7MM
- Stock
- 271
- In Stock ：
- 271
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.602 15.29mm
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Number of Positions :
- 3
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Voltage - Rated :
- 600VAC/DC
- Series :
- Mega-Fit 20024
- RoHS Status :
- ROHS3 Compliant
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Post :
- Tin
- Factory Lead Time :
- 11 Weeks
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Termination :
- Solder
- Contact Shape :
- Square
- Contact Length - Post :
- 0.127 3.23mm
- Pitch - Mating :
- 0.224 5.70mm
- Insulation Color :
- Black
- Number of Rows :
- 1
- Feature :
- Board Guide, Glow Wire Compliant
- Contact Material :
- Copper
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- Varies by WireGAuge
- Operating Temperature :
- -40°C~120°C
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Latch Holder
- Style :
- Board to Cable/Wire
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Connector Type :
- Header
- Datasheets
- 2002411123
2002411123 Documents
Mega-Fit 20024 Series 1-Row Header Solder Copper Through Hole Gold Liquid Crystal Polymer (LCP) 3-Position Board to Cable/Wire 0.602 15.29mm Height
2002411123 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.Specifically, it is one of the products in the Mega-Fit 20024 Series.Several benefits come from the Board Guide, Glow Wire Compliant feature.Devices operate at -40°C~120°C operating temperatures.
2002411123 Features
Mega-Fit 20024 series
2002411123 Applications
There are a lot of Molex
2002411123 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
