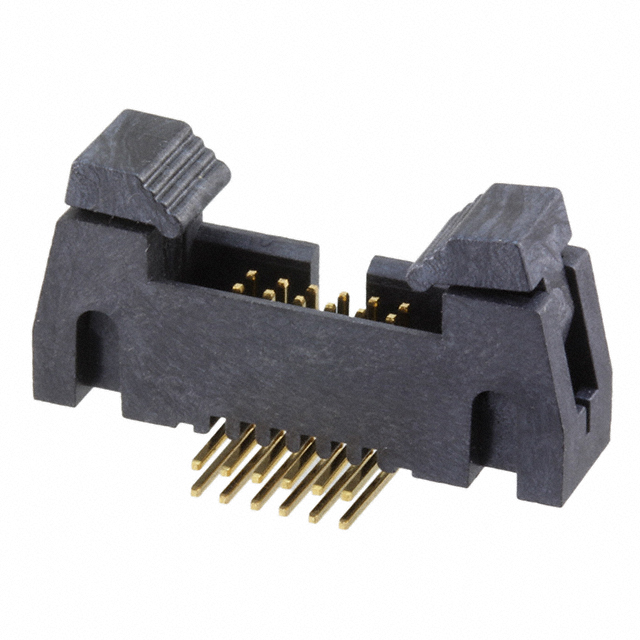

20021612-00012T4LF
Or copy the link below:
- Mfr.Part #
- 20021612-00012T4LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 12POS 1.27MM
- Stock
- 476
- In Stock ：
- 476
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Male Pins
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 2
- Mounting Type :
- Through Hole, Right Angle
- Housing Material :
- Thermoplastic
- Contact Resistance :
- 30mOhm
- Current Rating :
- 1A
- Connector Type :
- Header
- Termination :
- Solder
- Gender :
- Male
- Orientation :
- RIGHT ANGLE
- Shrouding :
- Shrouded - 4 Wall
- Contact Gender :
- Male
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Contact Length - Post :
- 0.091 2.30mm
- Material Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -40°C
- Housing Color :
- Black
- Insulation Height :
- 0.220 5.60mm
- Max Voltage Rating (AC) :
- 125V
- REACH SVHC :
- No SVHC
- Packaging :
- Tube
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Keying Slot
- Pitch - Mating :
- 0.050 1.27mm
- Insulation Material :
- Plastic
- Length :
- 22.12mm
- Max Operating Temperature :
- 85°C
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Contact Plating :
- Gold
- Pitch :
- 1.27mm
- Factory Lead Time :
- 14 Weeks
- Insulation Resistance :
- 1GOhm
- Contact Shape :
- Square
- Fastening Type :
- Latch Lock/Eject Hooks
- Number of Positions :
- 12
- Color :
- Black
- Contact Finish - Mating :
- Gold
- Number of Contacts :
- 12
- Voltage - Rated :
- 125V
- Contact Type :
- Male Pin
- Flammability Rating :
- UL94 V-0
- Lead Length :
- 2.3mm
- Contact Material :
- COPPER ALLOY
- Style :
- Board to Cable/Wire
- Series :
- Minitek127® 20021612
- Insulation Color :
- Black
- Depth :
- 10.8mm
- Mount :
- Through Hole
- Number of Positions Loaded :
- All
- Datasheets
- 20021612-00012T4LF
20021612-00012T4LF Documents
Minitek127® 20021612 Series 2-Row Header Solder Copper Alloy Tube Through Hole, Right Angle Gold Plastic 12-Position Board to Cable/Wire 0.220 5.60mm Height
20021612-00012T4LF Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Tube case is necessary to package the product.There is a product in the Minitek127® 20021612 Series.When the temperature is below 85°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.There are a number of advantages to its Keying Slot feature.Part Through Hole is mounted to the part.
20021612-00012T4LF Features
Minitek127® 20021612 series
20021612-00012T4LF Applications
There are a lot of Amphenol ICC (FCI)
20021612-00012T4LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
