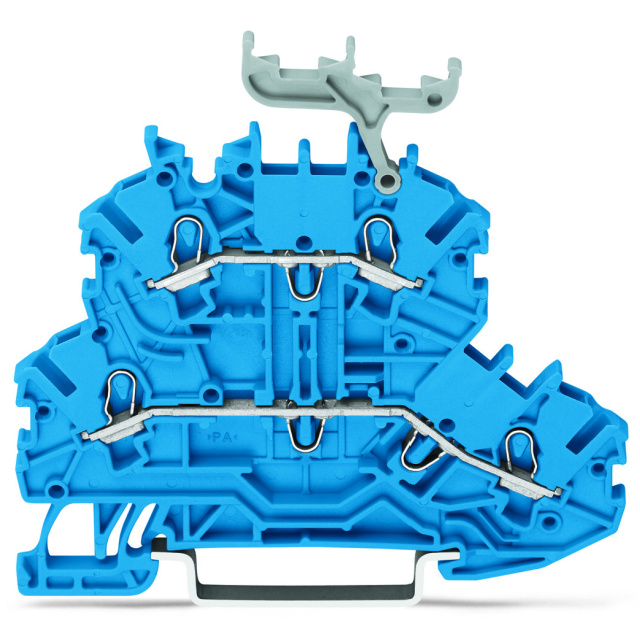

2000-2234

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

Type :

Terminal Block

Features :

-

Stripping Length :

9mm ~ 11mm

Approvals :

cURus;CSA

Rated current In :

13.5

Material Flammability Rating :

UL94 V-0

HTS :

8536.90.40.00

EU RoHS :

Compliant

Mounting Type :

DIN Rail

Voltage - IEC :

500V

Termination Style :

Push In, Spring

PPAP :

No

Manufacturer :

Wago

Width :

3.5

Inflammability class of insulation material according to with UL94 :

V0

Product Status :

Active

ECCN (US) :

EAR99

Series :

2000

Number of Positions :

4

Termination Method :

Spring Clamp

Connectable conductor cross section multi-wired :

0.14 - 1

Voltage - UL :

300V

Current - UL :

15 A

Fuse Type :

-

Color :

Blue

Terminal - Width :

3.5mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section solid-core :

0.5 - 1.5

Height :

69.7

Wire Gauge or Range - mm² :

0.14-1.5mm²

Package :

Box

Number of Circuits :

2

Disconnect Type :

-

Tradename :

CAGE CLAMP?

Maximum Current Rating (A) :

15

Depth :

61.8

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Number of Levels :

2

RoHS :

yes

Mounting :

T DIN RAIL

Current - IEC :

16 A

Wire Gauge or Range - AWG :

16-24 AWG

Length :

70

Number of Contacts :

2

Automotive :

No
