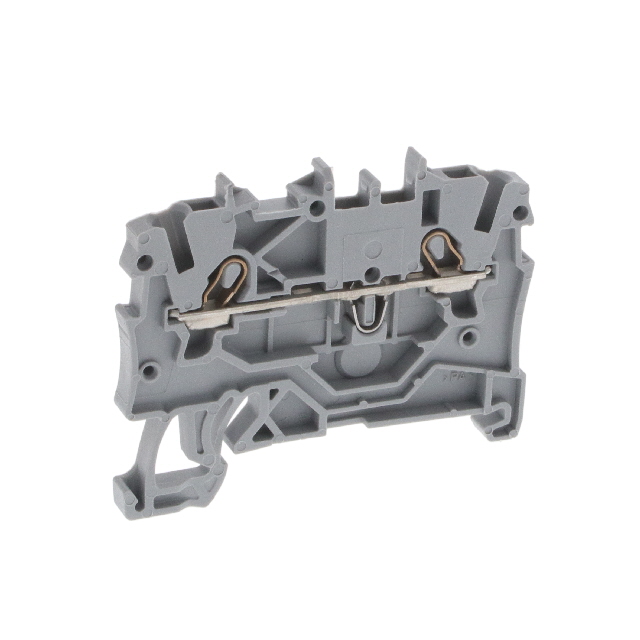

2000-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Current - IEC :

17.5 A

Termination Method :

Clamp

Clamp width :

3.50mm

Product Length (mm) :

48.5(mm)

Cross section (flexible) (max.) :

1.50mm²

Nominal voltage :

800V

Fuse Type :

-

Number of Positions :

2

Wire Gauge :

16-24(AWG)

Approvals :

CSA, UR

Terminal - Width :

3.5mm

Voltage - IEC :

800V

Rated Current :

18A

Rad Hardened :

No

Pins per row :

2

Mounting Style :

T DIN RAIL

AWG max. :

16

Color :

Gray

Pitch :

3.5mm

Min. stripping length :

10mm

Width :

3.50mm

Voltage - UL :

600V

Current Rating (Max) :

18(A)

Product Depth (mm) :

3.5(mm)

Cross section (flexible) (min.) :

0.14mm²

No. of rows :

1

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Package :

Bulk

Housing Material :

Polyamide 6/6

Current - UL :

15 A

Voltage Rating :

800 V

Series :

2000

AWG (min.) :

24

Stripping length (max.) :

12mm

Wire Gauge or Range - AWG :

16-20 AWG

Wire Gauge or Range - mm² :

0.5-1.5mm²

Type :

Standard Block

Content :

1pc(s)

Contact Pitch (mm) :

Not Required(mm)

Connection :

Pull spring

Product Status :

Active

Nominal current (details) :

13.5 A (18 A with flexible ladders)

Number of Levels :

1

Number of Circuits :

1

Number of Contacts :

2(POS)

Cross section (inflexible) (max.) :

1.50mm²

Operating Voltage (Max) :

800V

Rated Voltage :

800V

Termination Style :

Push In, Spring

RoHS :

yes

Current Rating :

13.5 → 18A

Base Product Number :

2000-120

Material Flammability Rating :

-

Cross section (inflexible) (min.) :

0.14mm²

Nominal current :

13.5A

Manufacturer :

Wago

Packaging :

Box

Manufacturer part # :

2000-1201

Number of Contact Rows :

2

Housing Color :

Gray

Mounting Type :

DIN Rail

Product Height (mm) :

33(mm)

Stripping Length :

9mm ~ 11mm

Nominal current - rounded value :

13.5A

Configuration :

L

Features :

-

Disconnect Type :

-
