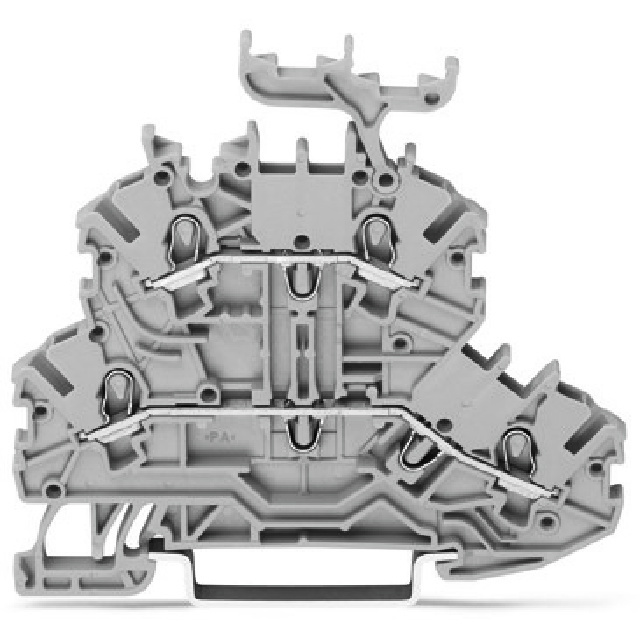

2000-2232

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Type :

Double-Deck Block

Number of Levels :

2

Rated current In :

13.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Material Flammability Rating :

UL94 V-0

Voltage - IEC :

500V

Number of Circuits :

2

Package :

Box

Connectable conductor cross section solid-core :

0.5 - 1.5

Length :

70

Current - UL :

10 A

Voltage - UL :

600V

Width :

3.5

ECCN (US) :

EAR99

Wire Gauge or Range - AWG :

16-24 AWG

Termination Style :

Push In, Spring

Wire Gauge or Range - mm² :

0.14-1.5mm²

Product Status :

Active

Number of Positions :

4

Connectable conductor cross section multi-wired :

0.14 - 1

Manufacturer :

Wago

Height :

69.7

Current - IEC :

16 A

Features :

-

Inflammability class of insulation material according to with UL94 :

V0

RoHS :

yes

Automotive :

No

Terminal - Width :

3.5mm

Mounting Type :

DIN Rail

Fuse Type :

-

EU RoHS :

Compliant

Approvals :

cURus;CSA

Stripping Length :

9mm ~ 11mm

Series :

TOPJOB®S

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

PPAP :

No

Disconnect Type :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

HTS :

8536.90.40.00

Depth :

61.8

Color :

Gray
