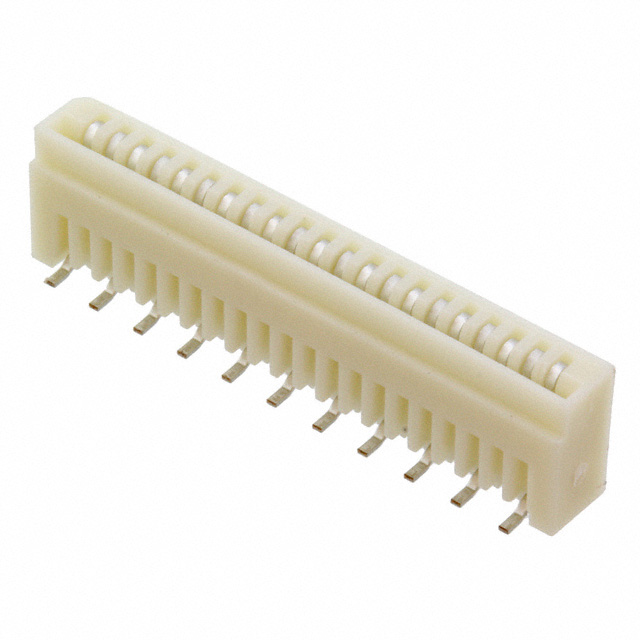

2-84982-1
Or copy the link below:
- Mfr.Part #
- 2-84982-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC FPC VERT 21POS 1MM SMD
- Stock
- 4,729
- In Stock ：
- 4,729
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Voltage - Rated :
- 125V
- Operating Supply Voltage :
- 125V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Tin
- Termination :
- Solder
- Min Operating Temperature :
- -20°C
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Number of Positions :
- 21
- PCB Mount Alignment :
- Without
- Sealable :
- No
- Pitch :
- 0.039 1.00mm
- Operating Temperature :
- -20°C~85°C
- Contact Current Rating :
- 1A
- Packaging :
- Tape and Reel (TR)
- PCB Mount Retention :
- Without
- RoHS Status :
- RoHS Compliant
- Orientation :
- Vertical
- Factory Lead Time :
- 13 Weeks
- Flammability Rating :
- UL94 V-0
- Cable End Type :
- Straight
- Max Voltage Rating (AC) :
- 125V
- ELV :
- Compliant
- Number of Contacts :
- 21
- FFC, FCB Thickness :
- 0.30mm
- Height Above Board :
- 0.220 5.59mm
- Circuit Application :
- Signal
- Housing Color :
- Beige
- Mounting Type :
- Surface Mount
- Shielding :
- Unshielded
- Contact Plating :
- Tin
- Width :
- 4.3942mm
- Wire/Cable Type :
- Flat Flex
- Length :
- 23mm
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Current Rating (Amps) :
- 1A
- Number of Rows :
- 1
- Height :
- 5.588mm
- Plating :
- Tin
- Mount :
- Surface Mount
- Contact Material :
- Phosphor Bronze
- Connector Type :
- Connector, Receptacle, Socket
- Flat Flex Type :
- FFC, FPC
- Gender :
- Receptacle
- Current Rating :
- 1A
- Plating Thickness :
- 1μm
- Published :
- 2006
- Max Operating Temperature :
- 85°C
- Datasheets
- 2-84982-1
FFC, FPC Contacts, Vertical - 1 Sided Tape & Reel (TR) 0.039 1.00mm Solder 21 Positions Surface Mount Tin -20°C~85°C 1A
2-84982-1 Overview
A Connector, Receptacle, Socket package is included with it.Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.Use it below 85°C.A minimum temperature of -20°C must be maintained for the operation of this device.By Surface Mount, the part is mounted.The operating voltage of this memory is 125V.Operating temperature is set to -20°C~85°C.
2-84982-1 Features
2-84982-1 Applications
There are a lot of TE Connectivity AMP Connectors
2-84982-1 FFC, FPC (Flat Flexible) Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
