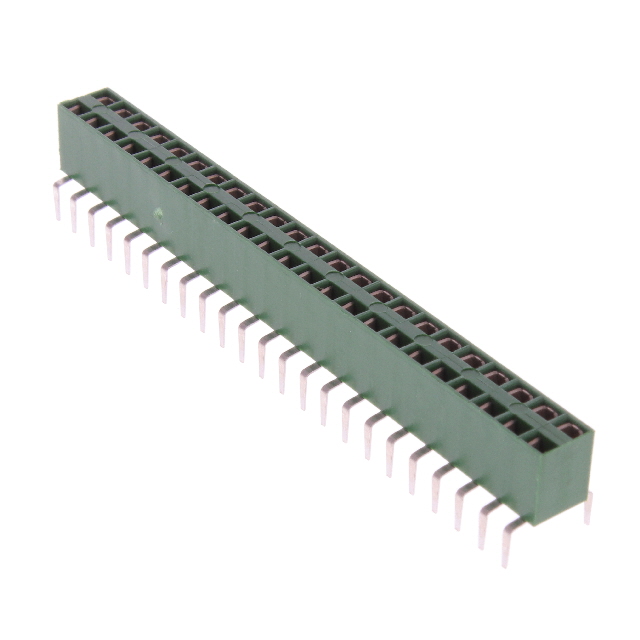

2-829264-3
Or copy the link below:
- Mfr.Part #
- 2-829264-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 46POS 0.1 GOLD PCB
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Number of Conductors :
- ONE
- Contact Length - Post :
- 0.120 3.05mm
- Contact Finish - Post :
- Tin
- Pbfree Code :
- yes
- Published :
- 2012
- Reference Standard :
- UL
- Pitch - Mating :
- 0.100 2.54mm
- Mounting Type :
- Through Hole
- Filter Feature :
- No
- Number of Rows :
- 2
- DIN Conformance :
- No
- Gender :
- FEMALE
- Body Breadth :
- 0.199 inch
- IEC Conformance :
- No
- Max Operating Temperature :
- 105°C
- Dielectric Withstanding Voltage :
- 750VAC V
- Style :
- Board to Board
- Number of Positions Loaded :
- All
- MIL Conformance :
- No
- UL Flammability Code :
- 94V-0
- Contact Type :
- Female Socket
- Connector Type :
- Receptacle
- Number of Positions :
- 46
- Mixed Contacts :
- No
- Lead Length :
- 3.1mm
- Mating Contact Pitch :
- 0.1 inch
- Insulation Color :
- Green
- Sealable :
- No
- Fastening Type :
- Push-Pull
- Flammability Rating :
- UL94 V-0
- Series :
- AMPMODU HV-100
- RoHS Status :
- RoHS Compliant
- Insulation Height :
- 0.244 6.20mm
- Depth :
- 5.06mm
- ELV :
- Compliant
- Plating Thickness :
- 3µm
- ECCN Code :
- EAR99
- JESD-609 Code :
- e3
- Rated Current (Signal) :
- 3A
- Option :
- GENERAL PURPOSE
- PCB Contact Pattern :
- RECTANGULAR
- Housing Material :
- Polyester
- Length :
- 20.32mm
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Insulation Resistance :
- 5000000000Ohm
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Packaging :
- Tray
- Height :
- 6.2mm
- HTS Code :
- 8536.69.40.40
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Length - Tail :
- 3.05mm
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- PCB Mount Retention :
- Without
- Contact Resistance :
- 12mOhm
- Contact Shape :
- Square
- Contact Material :
- COPPER ALLOY
- Additional Feature :
- BOTTOM OR TOP ENTRY
- Number Of PCB Rows :
- 2
- Factory Lead Time :
- 21 Weeks
- Orientation :
- Vertical
- Contact Plating :
- Tin, Gold
- Row Spacing - Mating :
- 0.100 (2.54mm)
- PCB Thickness :
- 1.6mm
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Housing Color :
- Black
- Min Operating Temperature :
- -65°C
- Datasheets
- 2-829264-3
2 Rows Receptacle Solder Copper Alloy Through Hole Tray Gold Polybutylene Terephthalate (PBT) 46 Positions Female Socket
2-829264-3 Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the AMPMODU HV-100 Series of products.Additionally, there are other features, such as BOTTOM OR TOP ENTRY.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -65°C at all times.
2-829264-3 Features
AMPMODU HV-100 series
2-829264-3 Applications
There are a lot of TE Connectivity AMP Connectors
2-829264-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
