2-794623-4
Or copy the link below:
- Mfr.Part #
- 2-794623-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 24POS 3MM
- Stock
- 31,472
- In Stock ：
- 31,472
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Terminal Pitch :
- 3mm
- Number Of PCB Rows :
- 2
- Current Rating (Amps) :
- Varies by WireGAuge
- Dielectric Withstanding Voltage :
- 1500VAC V
- Voltage - Rated :
- 250V
- UL Flammability Code :
- 94V-0
- Mating Contact Pitch :
- 0.118 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Mount :
- Surface Mount
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- IEC Conformance :
- No
- Series :
- Micro MATE-N-LOK
- Connector Type :
- Header
- Contact Finish - Post :
- Tin-Lead
- Total Number of Contacts :
- 24
- Body Depth :
- 0.615 inch
- JESD-609 Code :
- e0
- Body Length or Diameter :
- 1.575 inch
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Reference Standard :
- UL, CSA
- Mixed Contacts :
- No
- Material Flammability Rating :
- UL94 V-0
- Durability :
- 150 Cycles
- Orientation :
- RIGHT ANGLE
- Radiation Hardening :
- No
- Contact Type :
- Male Pin
- Insulation Resistance :
- 100000000Ohm
- Factory Lead Time :
- 10 Weeks
- Number of Positions :
- 24
- Applications :
- GENERAL PURPOSE
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Pitch - Mating :
- 0.118 3.00mm
- Contact Shape :
- Square
- Pbfree Code :
- No
- Current Rating :
- 5A
- ECCN Code :
- EAR99
- Feature :
- Board Lock
- Insulation Height :
- 0.290 7.37mm
- Contact Material :
- Brass
- ELV :
- Non-Compliant
- PCB Contact Pattern :
- RECTANGULAR
- Packaging :
- Tape and Reel (TR)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Filter Feature :
- No
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- Lead Free :
- Contains Lead
- Plating Thickness :
- 30μin
- MIL Conformance :
- No
- Insulation Material :
- Polyamide (PA), Nylon
- Published :
- 2010
- Mounting Type :
- Surface Mount, Right Angle
- DIN Conformance :
- No
- Number of Positions Loaded :
- All
- Polarization Key :
- POLARIZED HOUSING
- Housing Material :
- Nylon
- Additional Feature :
- POLARIZED
- RoHS Status :
- Non-RoHS Compliant
- Operating Temperature :
- -40°C~105°C
- Contact Finish - Mating :
- Gold
- HTS Code :
- 8536.69.40.40
- Fastening Type :
- Locking Ramp
- Number of Conductors :
- ONE
- Reliability :
- COMMERCIAL
- Housing Color :
- Black
- Datasheets
- 2-794623-4

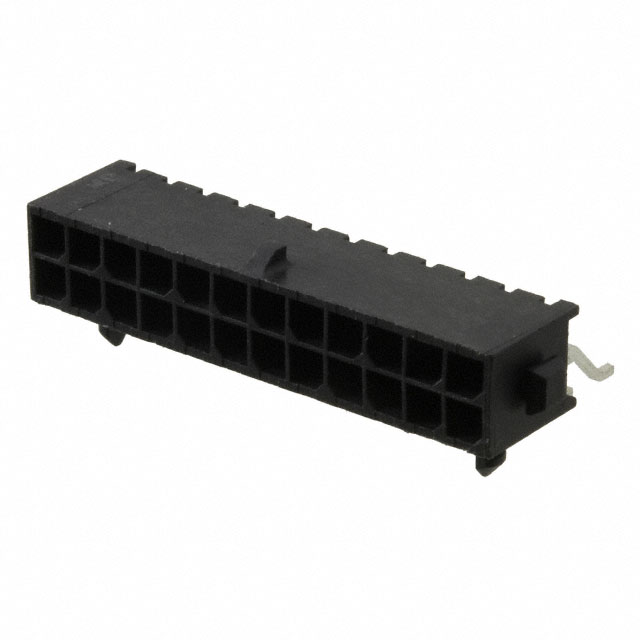

Micro MATE-N-LOK Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon 24-Position Board to Cable/Wire 0.290 7.37mm Height
2-794623-4 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the mount type.Tape & Reel (TR) cases are used to package the product.This product is in the Micro MATE-N-LOK Series.Also, there's POLARIZED, to name a few.There's an application for the device called General Purpose.As a result of its Board Lock feature, it possesses a great deal of power.There's a Surface Mount on the part.Operating temperature is -40°C~105°C.
2-794623-4 Features
Micro MATE-N-LOK series
2-794623-4 Applications
There are a lot of TE Connectivity AMP Connectors
2-794623-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
