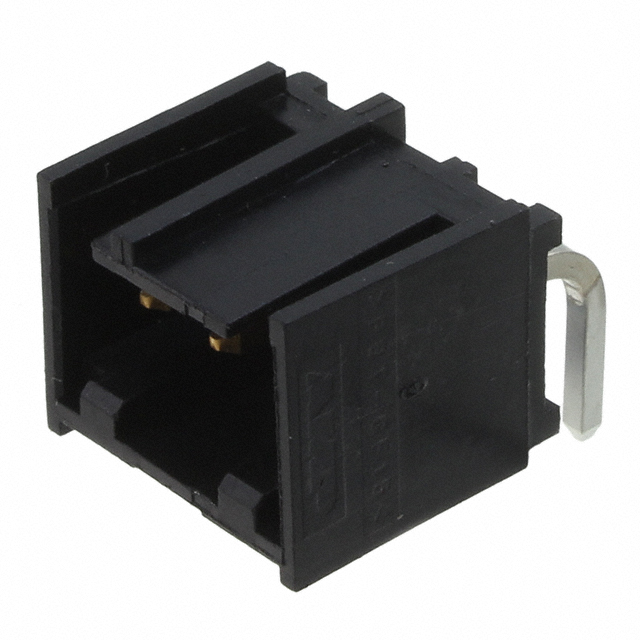

2-647133-3
Or copy the link below:
- Mfr.Part #
- 2-647133-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 3POS 3.96MM
- Stock
- 28,048
- In Stock ：
- 28,048
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- 0.300 7.62mm
- Contact Length - Post :
- 0.125 3.18mm
- Insulation Color :
- Black
- Published :
- 2011
- Voltage - Rated AC :
- 600V
- Operating Temperature :
- -55°C~105°C
- Housing Material :
- Polyester
- Series :
- MTA-156
- Insulation Material :
- Thermoplastic, Glass Filled
- PCB Mounting Orientation :
- RIGHT ANGLE
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- Applications :
- General Purpose, Industrial
- Contact Finish - Post :
- Tin
- Mount :
- Through Hole
- Current Rating :
- 7A
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- Voltage - Rated :
- 600VAC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Number of Rows :
- 1
- Mixed Contacts :
- No
- Insulation Height :
- 0.455 11.56mm
- MIL Conformance :
- No
- Pitch - Mating :
- 0.156 3.96mm
- RoHS Status :
- RoHS Compliant
- Style :
- Board to Cable/Wire
- Additional Feature :
- LATCHED
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold, Tin
- Mounting Type :
- Through Hole, Right Angle
- UL Flammability Code :
- 94V-0
- Shrouding :
- Shrouded - 4 Wall
- JESD-609 Code :
- e3
- Contact Gender :
- Male
- ELV :
- Compliant
- Current Rating (Amps) :
- Varies by WireGAuge
- Flammability Rating :
- UL94 V-0
- Lead Length :
- 3.18mm
- DIN Conformance :
- No
- Packaging :
- Bulk
- Termination :
- Solder
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Radiation Hardening :
- No
- Fastening Type :
- Friction Lock
- Number of Positions :
- 3
- Filter Feature :
- No
- Contact Material :
- COPPER ALLOY
- Orientation :
- RIGHT ANGLE
- Datasheets
- 2-647133-3
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Thermoplastic, Glass Filled 3-Position Board to Cable/Wire 0.455 11.56mm Height
2-647133-3 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number MTA-156 belongs to the MTA-156 Series.Further, there are features such as LATCHED, to name only a few.In addition to General Purpose, Industrial, there are other possible applications for the device.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~105°C.
2-647133-3 Features
MTA-156 series
2-647133-3 Applications
There are a lot of TE Connectivity AMP Connectors
2-647133-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
