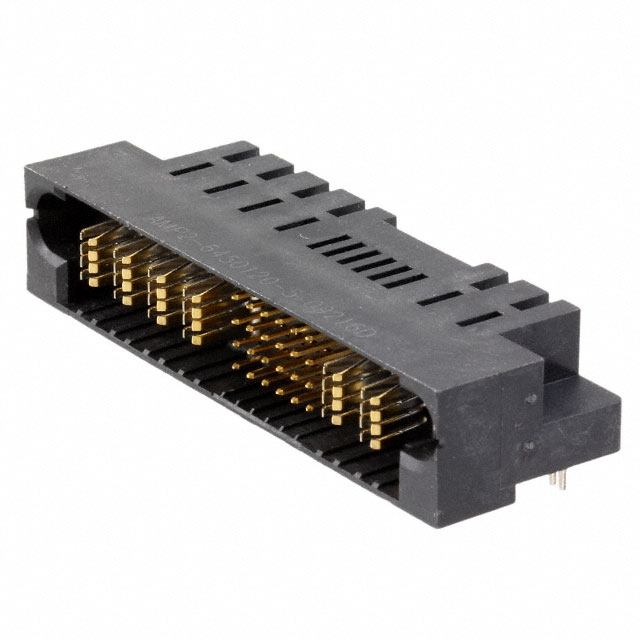

2-6450120-5
Or copy the link below:
- Mfr.Part #
- 2-6450120-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER MULTI-BEAM 30POS PCB
- Stock
- 16,955
- In Stock ：
- 16,955
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 25 Weeks
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Connector Style :
- Multi-Beam
- Current Rating :
- 42A
- Number of Rows :
- 4
- Contact Finish :
- Gold
- Max Operating Temperature :
- 105°C
- Sealable :
- No
- Housing Color :
- Black
- Feature :
- Board Lock, Mating Guide
- Series :
- MULTI-BEAM XL
- Pitch :
- 0.100 2.54mm
- Mount :
- Through Hole
- Housing Material :
- Thermoplastic
- Contact Retention :
- Without
- Plating Thickness :
- 76 nm
- Number of Positions Loaded :
- All
- Orientation :
- RIGHT ANGLE
- Operating Temperature :
- -20°C~105°C
- Operating Supply Voltage :
- 60V
- PCB Thickness :
- 1.57mm
- Contact Plating :
- Tin
- ELV :
- Compliant
- Number of Positions :
- 30
- Connector Type :
- Header, Male Pins and Blades
- Contact Layout, Typical :
- 24 Signal, 6 Power
- Material Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 30
- Radiation Hardening :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Row Spacing :
- 2.54 mm
- Contact Current Rating :
- 42A
- Insulation Diameter :
- 2.92 mm
- Number of Power Positions :
- 6
- Termination :
- Solder
- Published :
- 2010
- Number of Signal Positions :
- 24
- Circuit Application :
- Power
- Packaging :
- Tray
- PCB Mounting Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Min Operating Temperature :
- -20°C
- Mounting Type :
- Through Hole, Right Angle
- Datasheets
- 2-6450120-5
