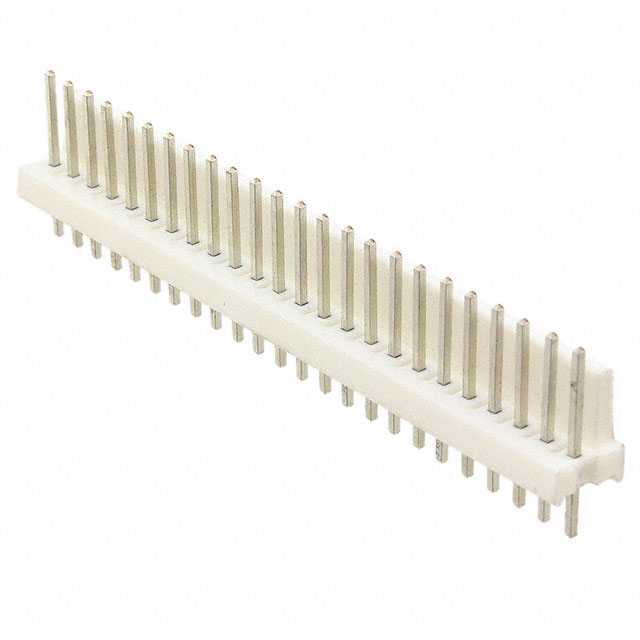

2-640454-4
Or copy the link below:
- Mfr.Part #
- 2-640454-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 24POS 2.54MM
- Stock
- 1,393
- In Stock ：
- 1,393
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch :
- 2.54mm
- Contact Finish - Mating :
- Tin
- Insulation Color :
- Natural
- Insulation Material :
- Thermoplastic
- Min Operating Temperature :
- -67°C
- Approval Agency :
- CSA
- Series :
- MTA-100
- Mounting Type :
- Through Hole
- Overall Contact Length :
- 0.535 13.59mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Plating :
- Tin
- Lead Length :
- 3.56mm
- Number of Contacts :
- 24
- Published :
- 2008
- Height :
- 7.75mm
- PCB Mount Retention :
- Without
- Style :
- Board to Cable/Wire
- Contact Length - Mating :
- 0.295 7.49mm
- RoHS Status :
- RoHS Compliant
- Insulation Height :
- 0.305 7.75mm
- Voltage - Rated AC :
- 250V
- Connector Type :
- Header
- Contact Length - Post :
- 0.140 3.56mm
- Contact Current Rating :
- 5A
- Circuit Application :
- Signal
- Number of Positions :
- 24
- Mating Post Length :
- 7.49mm
- Shrouding :
- Shrouded - 1 Wall
- Underplate Material :
- Nickel
- Sealable :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Length :
- 60.96mm
- Mount :
- Through Hole
- Contact Material :
- COPPER ALLOY
- ELV :
- Compliant
- PCB Thickness :
- 1.6002mm
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyester
- Plating :
- Tin
- Max Operating Temperature :
- 221°C
- Max Voltage Rating (AC) :
- 250V
- Mating Retention :
- Without
- Depth :
- 5.72mm
- Contact Style :
- Straight
- Plating Thickness :
- 3.81μm
- Housing Color :
- Natural, White
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Vertical
- Contact Type :
- Male Pin
- Current Rating (Amps) :
- Varies by WireGAuge
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Color :
- Natural
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Contact Resistance :
- 6mOhm
- PCB Mounting Orientation :
- Vertical
- Number of Rows :
- 1
- Contact Gender :
- Male
- Current Rating :
- 5A
- Voltage - Rated :
- 250VAC
- Factory Lead Time :
- 18 Weeks
- Applications :
- GENERAL PURPOSE
- Operating Supply Voltage :
- 250V
- Radiation Hardening :
- No
- Termination :
- Solder
- Operating Temperature :
- -55°C~105°C
- PCB Mount Alignment :
- Without
- Contact Finish Thickness - Mating :
- 3.81μm
- Length - Tail :
- 3.56mm
- Datasheets
- 2-640454-4
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic 24-Position Board to Cable/Wire 0.305 7.75mm Height
2-640454-4 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the MTA-100 Series, it belongs to the range of products of that series.A temperature below 221°C is best for using it.The device must run at -67°C degrees.This device may be used for the purpose of General Purpose.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-55°C~105°C Operating Temperature is the default operating temperature for the device.
2-640454-4 Features
MTA-100 series
2-640454-4 Applications
There are a lot of TE Connectivity AMP Connectors
2-640454-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
