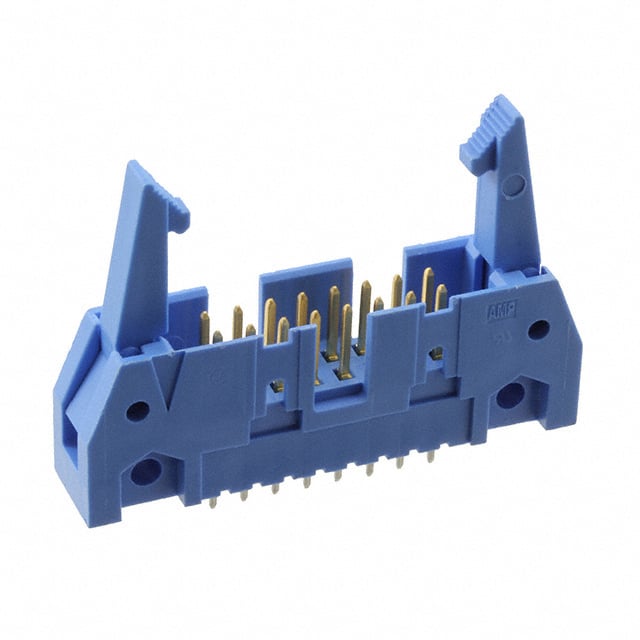

2-5499206-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

DIN Conformance :

No

Polarization Key :

POLARIZED HOUSING

Feature :

Keying Slot, Mounting Flange

Mating Connector Lock :

With

Lead Length :

2.79mm

Row Spacing - Mating :

0.100 (2.54mm)

Number Of PCB Rows :

2

Voltage - Rated :

250VAC

HTS Code :

8536.69.40.40

Contact Finish - Post :

Tin

ECCN Code :

EAR99

Flammability Rating :

UL94 V-0

Number of Positions :

16

Mixed Contacts :

No

Contact Type :

Male Pin

Connector Type :

Header

Dielectric Withstanding Voltage :

1000VAC V

Filter Feature :

No

Operating Temperature :

-65°C~105°C

Current Rating :

1A

Depth :

8.53mm

IEC Conformance :

No

Pitch - Mating :

0.100 2.54mm

Rated Current (Signal) :

1A

Shrouding :

Shrouded - 4 Wall

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Series :

AMP-Latch

Overall Contact Length :

0.639 16.23mm

RoHS Status :

RoHS Compliant

Number of Rows :

2

UL Flammability Code :

94V-0

MIL Conformance :

No

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Packaging :

Tray

PCB Mount Retention :

Without

Material Flammability Rating :

UL94 V-0

Insulation Color :

Blue

Contact Length - Post :

0.110 2.79mm

Contact Finish - Mating :

Gold or Gold-Palladium

Style :

Board to Cable/Wire

Mating Contact Pitch :

0.1 inch

Shrouded End Dimension :

3.81 mm

Housing Material :

Thermoplastic

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole

Contact Length - Mating :

0.240 6.10mm

Mount :

Through Hole

Reliability :

COMMERCIAL

Body Breadth :

0.336 inch

Operating Supply Voltage :

250V

Fastening Type :

Latch Lock/Eject Hooks, Long

Plating Thickness :

760 nm

Termination :

Solder

Contact Current Rating :

1A

Length :

39.624mm

Factory Lead Time :

9 Weeks

Contact Finish Thickness - Post :

100.0μin 2.54μm

Orientation :

Vertical

Contact Gender :

Male

Reference Standard :

UL

Option :

GENERAL PURPOSE

Published :

2001

Number of Positions Loaded :

All

Contact Shape :

Square

Contact Material :

Bronze

Radiation Hardening :

No

PCB Thickness :

1.57mm

Circuit Application :

Signal

Height :

13.94mm

Number of Conductors :

ONE

Contact Plating :

Gold, Tin

Insulation Resistance :

5GOhm

Max Voltage Rating (AC) :

250V

Insulation Height :

0.549 13.94mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
