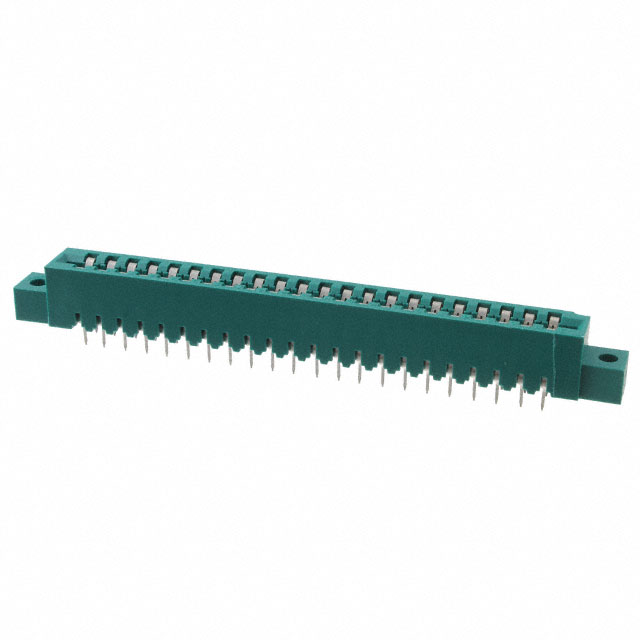

2-530689-6
Or copy the link below:
- Mfr.Part #
- 2-530689-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 44POS 0.156
- Stock
- 337
- In Stock ：
- 337
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Lead Length :
- 3.81mm
- Factory Lead Time :
- 13 Weeks
- Filter Feature :
- No
- Card Type :
- Non Specified - Dual Edge
- Min Operating Temperature :
- -55°C
- Material - Insulation :
- Polyester, Glass Filled
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Vertical
- Mount :
- Through Hole
- Total Number of Contacts :
- 22
- Flange Feature :
- Flush Mount, Top Opening, Unthreaded, 0.128 (3.25mm) Dia
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Max Operating Temperature :
- 105°C
- Housing Color :
- Green
- Current Rating :
- 5A
- Color :
- Black
- Termination :
- Solder
- Packaging :
- Bulk
- Lead Free :
- Contains Lead
- Contact Finish :
- Gold
- Mixed Contacts :
- No
- RoHS Status :
- Non-RoHS Compliant
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 2
- Housing Material :
- Glass
- Gender :
- FEMALE
- IEC Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Connector Type :
- Connector, Receptacle, Socket
- Height :
- 11.68mm
- Plating Thickness :
- 760 nm
- Pbfree Code :
- No
- Contact Current Rating :
- 5A
- MIL Conformance :
- No
- Underplate Material :
- Nickel
- UL Flammability Code :
- 94V-0
- Contact Material :
- Phosphor Bronze
- ELV :
- Non-Compliant
- JESD-609 Code :
- e3
- Card Thickness :
- 0.055 ~ 0.070 1.40mm ~ 1.78mm
- Pitch :
- 0.156 3.96mm
- DIN Conformance :
- No
- Published :
- 2004
- Number of Positions :
- 44
- Mounting Type :
- Through Hole
- Row Spacing :
- 5.08 mm
- Contact Plating :
- Gold, Tin
- Additional Feature :
- LOW PROFILE
- Read Out :
- Dual
- Datasheets
- 2-530689-6
Female Black 0.156 3.96mm Phosphor Bronze 2 Rows Bulk Solder Gold 44 Positions Polyester, Glass Filled
2-530689-6 Overview
The material was packaged according to the specifications of Bulk.It's recommended you mount it type Through Hole.This device is connected through the connector socket Connector, Receptacle, Socket.Additionally, this chip has the following features: LOW PROFILEIn order for the system to operate in a stable manner, it must be operated at 105°C°C at its maximum.In order to ensure that it is reliable, it must operate at a minimum temperature of -55°C degrees Celsius.
2-530689-6 Features
2-530689-6 Applications
There are a lot of TE Connectivity AMP Connectors
2-530689-6 Edgeboard Connectors applications.
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
