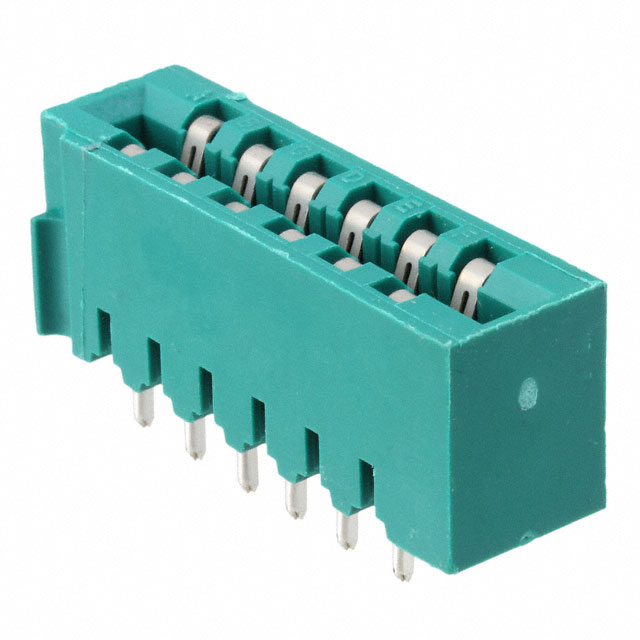

2-530666-1
Or copy the link below:
- Mfr.Part #
- 2-530666-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 12POS 0.156
- Stock
- 1,195
- In Stock ：
- 1,195
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Reference Standard :
- UL
- Packaging :
- Bulk
- Reliability :
- COMMERCIAL
- IEC Conformance :
- No
- Termination :
- Solder
- Lead Free :
- Contains Lead
- Contact Material :
- Phosphor Bronze
- Current Rating :
- 5A
- Pbfree Code :
- No
- Contact Style :
- BELLOWED TYPE
- Card Thickness :
- 0.055 ~ 0.070 1.40mm ~ 1.78mm
- Mounting Type :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Underplate Material :
- Nickel
- Number of Rows :
- 2
- Row Spacing :
- 5.08 mm
- Contact Finish :
- Gold
- UL Flammability Code :
- 94V-0
- Card Type :
- Non Specified - Dual Edge
- Number Of PCB Rows :
- 2
- Operating Temperature :
- -55°C~105°C
- RoHS Status :
- Non-RoHS Compliant
- Mixed Contacts :
- No
- Housing Material :
- Glass
- Height :
- 11.68mm
- Total Number of Contacts :
- 6
- Material - Insulation :
- Polyester, Glass Filled
- Orientation :
- Vertical
- Factory Lead Time :
- 14 Weeks
- Body Breadth :
- 0.37 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Gold, Tin
- Connector Type :
- Connector, Receptacle, Socket
- Number of Conductors :
- ONE
- Contact Current Rating :
- 5A
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions/Bay/Row :
- 6
- ELV :
- Non-Compliant
- Body Length or Diameter :
- 1.785 inch
- Length - Termination :
- 0.15 inch
- Filter Feature :
- No
- Contact Pattern :
- RECTANGULAR
- Plating Thickness :
- 760 nm
- Pitch :
- 0.156 3.96mm
- Housing Color :
- Green
- Number of Positions :
- 12
- Published :
- 1997
- Read Out :
- Dual
- Option :
- GENERAL PURPOSE
- PCB Contact Pattern :
- RECTANGULAR
- ECCN Code :
- EAR99
- Additional Feature :
- LOW PROFILE
- Gender :
- FEMALE
- Lead Pitch :
- 3.96mm
- Lead Length :
- 3.81mm
- Color :
- Black
- Mount :
- Through Hole
- JESD-609 Code :
- e3
- MIL Conformance :
- No
- DIN Conformance :
- No
- Rated Current (Signal) :
- 5A
- Datasheets
- 2-530666-1
