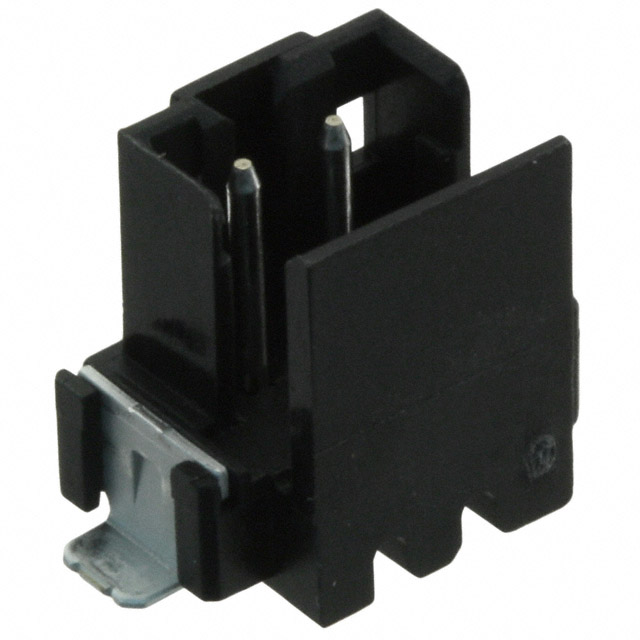

2-292175-2
Or copy the link below:
- Mfr.Part #
- 2-292175-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 2POS 2MM
- Stock
- 8
- In Stock ：
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Conductors :
- ONE
- Number Of PCB Rows :
- 1
- IEC Conformance :
- No
- Packaging :
- Tape and Reel (TR)
- Depth :
- 5.8mm
- Housing Material :
- Polyphenylene
- Factory Lead Time :
- 14 Weeks
- Published :
- 2010
- Plating Thickness :
- 2μm
- Mating Retention :
- Without
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Length :
- 5.8mm
- Mounting Type :
- Surface Mount
- Contact Finish - Mating :
- Tin
- PCB Thickness :
- 800μm
- Style :
- Board to Cable/Wire
- REACH SVHC :
- No SVHC
- Contact Length - Mating :
- 0.177 4.50mm
- Reliability :
- COMMERCIAL
- Shape :
- RECTANGULAR
- Height :
- 7.8mm
- Shrouding :
- Shrouded - 4 Wall
- Flammability Rating :
- UL94 V-0
- Wire/Cable Type :
- Discrete
- PCB Mount Retention :
- With
- Filter Feature :
- No
- Mating Post Length :
- 4.4958mm
- Contact Current Rating :
- 4A
- Mount :
- Surface Mount
- Voltage - Rated :
- 125VAC
- Number of Positions :
- 2
- Applications :
- GENERAL PURPOSE
- Feature :
- Solder Retention
- Mixed Contacts :
- No
- Total Number of Contacts :
- 2
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- DIN Conformance :
- No
- Lead Free :
- Lead Free
- Contact Material :
- Brass
- Operating Supply Voltage :
- 125V
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Approval Agency :
- CSA
- Current Rating :
- 4A
- Insulation Diameter :
- 930 μm
- Material Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- MIL Conformance :
- No
- UL Flammability Code :
- 94V-0
- Sealable :
- No
- Mating Contact Pitch :
- 0.079 inch
- Series :
- CT
- Wire/Cable Gauge :
- 22 AWG
- Connector Type :
- Header
- Orientation :
- Vertical
- Contact Gender :
- Male
- ELV :
- Compliant
- Pitch - Mating :
- 0.079 2.00mm
- Fastening Type :
- Detent Lock
- Polarization Key :
- POLARIZED HOUSING
- Termination :
- Solder
- Width :
- 5.8mm
- Insulation Height :
- 0.307 7.80mm
- Pbfree Code :
- yes
- Contact Shape :
- Square
- Max Operating Temperature :
- 105°C
- Datasheets
- 2-292175-2
CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA6T), Nylon 6T, Glass Filled 2-Position Board to Cable/Wire 0.307 7.80mm Height
2-292175-2 Overview
The product comes in a package of Header.Surface Mount is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the CT Series.Use it when the temperature is below 105°C.Temperatures below -40°C are required for this device to operate.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Solder Retention feature.It is mounted by Surface Mount.Its operating supply voltage is 125V.
2-292175-2 Features
CT series
2-292175-2 Applications
There are a lot of TE Connectivity AMP Connectors
2-292175-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
