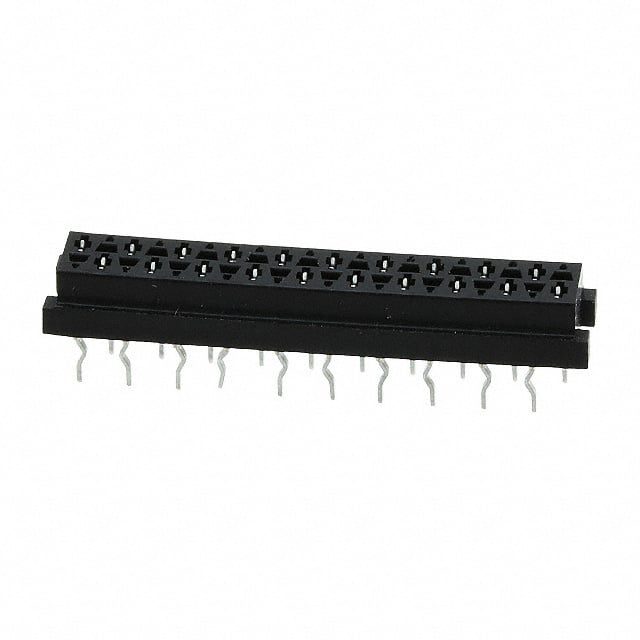

2-2178710-0
Or copy the link below:
- Mfr.Part #
- 2-2178710-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 20POS 0.1 TIN PCB
- Stock
- 28,000
- In Stock ：
- 28,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Max Operating Temperature :
- 105°C
- Contact Finish - Mating :
- Tin
- Number of Rows :
- 2
- Housing Color :
- Black
- RoHS Status :
- RoHS Compliant
- Pitch :
- 1.27mm
- Lead Length :
- 3.0988mm
- Connector Type :
- Receptacle
- Published :
- 2014
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- ELV :
- Compliant
- Height :
- 4.064mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Pins :
- 20
- Insulation Color :
- Black
- Contact Type :
- Forked
- Voltage - Rated :
- 100Vdc
- Termination :
- Kinked Pin, Solder
- Contact Current Rating :
- 1.4A
- Number of Positions :
- 20
- Mounting Type :
- Through Hole
- Insulation Height :
- 0.157 4.00mm
- Factory Lead Time :
- 23 Weeks
- Contact Material :
- Brass
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Orientation :
- Straight, Vertical
- Contact Plating :
- Tin
- Packaging :
- Tape and Reel (TR)
- Operating Supply Voltage :
- 100V
- Series :
- Micro-MaTch
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Fastening Type :
- Push-Pull
- Contact Finish - Post :
- Tin
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Mount :
- Through Hole
- PCB Mounting Orientation :
- Vertical
- Mating Connector Lock :
- Without
- Style :
- Board to Board or Cable
- Contact Length - Post :
- 0.122 3.10mm
- Operating Temperature :
- -30°C~85°C
- REACH SVHC :
- No SVHC
- Min Operating Temperature :
- -40°C
- Applications :
- General Purpose, Telecommunications
- Plating Thickness :
- 5 nm
- Housing Material :
- Polyester
- Length :
- 27.33mm
- Gender :
- Receptacle
- PCB Mount Retention :
- With
- Current Rating :
- 850mA
- Insulation Resistance :
- 1GOhm
- Number of Contacts :
- 20
- Number of Positions Loaded :
- All
- Datasheets
- 2-2178710-0
2 Rows Receptacle Kinked Pin, Solder Brass Through Hole Tape & Reel (TR) Tin Polybutylene Terephthalate (PBT) 20 Positions Forked
2-2178710-0 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Micro-MaTch belongs to the Micro-MaTch Series.A 20 pin is provided on the device.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to General Purpose, Telecommunications, there are other possible applications for the device.There is a Through Hole mount on the part.A 100V voltage is used to supply power to this memory.This device operates at a temperature of -30°C~85°C.
2-2178710-0 Features
Micro-MaTch series
2-2178710-0 Applications
There are a lot of TE Connectivity AMP Connectors
2-2178710-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
