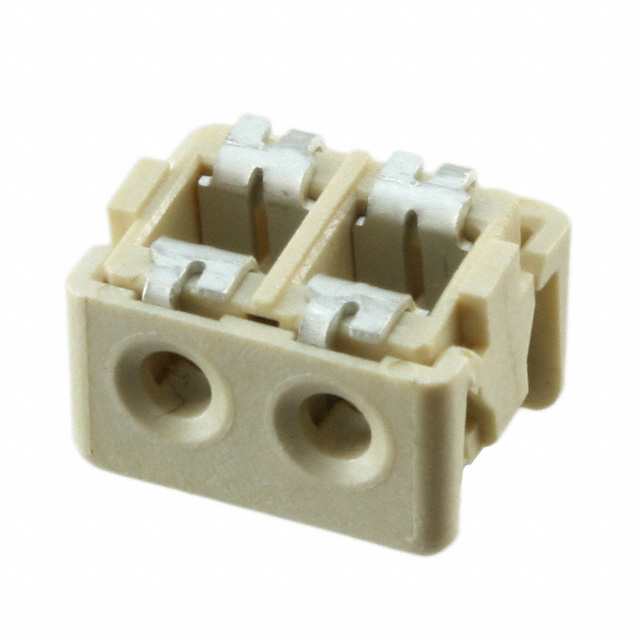

2-2106003-2
Or copy the link below:
- Mfr.Part #
- 2-2106003-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN WIRE IDC 2POS 22AWG SMD RA
- Stock
- 16,453
- In Stock ：
- 16,453
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Board In, Direct Wire to Board
- Current Rating :
- 7A
- Orientation :
- RIGHT ANGLE
- Cable Termination :
- IDC
- Termination :
- SMD/SMT
- Max Voltage Rating (DC) :
- 250.25kV
- Width :
- 9.7mm
- Wire Gauge :
- 22 AWG
- Min Operating Temperature :
- -40°C
- Lead Free :
- Lead Free
- Height :
- 5.7912mm
- Factory Lead Time :
- 9 Weeks
- Wire/Cable Type :
- Discrete
- Length :
- 9.7mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Natural
- Connector Type :
- Individual Wires
- Published :
- 2010
- Number of Positions :
- 2
- Board-Side Pitch :
- 0.157 4.00mm
- Housing Color :
- Natural
- Contact Plating :
- Tin
- Max Voltage Rating (AC) :
- 250V
- REACH SVHC :
- No SVHC
- Number of Positions Loaded :
- All
- Cable Pitch :
- 0.157 4.00mm
- Circuit Application :
- Power
- Mount :
- Surface Mount
- Contact Finish :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Sealable :
- No
- Packaging :
- Tape and Reel (TR)
- Housing Material :
- Polymer
- Insulation Diameter :
- 1.7 mm
- Flammability Rating :
- UL94 V-0
- Wire/Cable Gauge :
- 22 AWG
- Keyed :
- No
- Max Operating Temperature :
- 221°C
- Pitch :
- 3.9878mm
- ELV :
- Compliant
- Contact Current Rating :
- 7A
- Number of Rows :
- 1
- Mounting Type :
- Surface Mount, Right Angle
- Gender :
- Receptacle
- RoHS Status :
- RoHS Compliant
- Number of Contacts :
- 2
- Depth :
- 7.75mm
- Feature :
- Closed End
- Approval Agency :
- CSA
- Make First / Break Last :
- No
- Radiation Hardening :
- No
- Voltage - Rated :
- 250V
- Contact Material :
- Copper
- Datasheets
- 2-2106003-2
2-2106003-2 datasheet pdf and Rectangular Connectors - Board In, Direct Wire to Board product details from TE Connectivity AMP Connectors stock available at Xinshop
