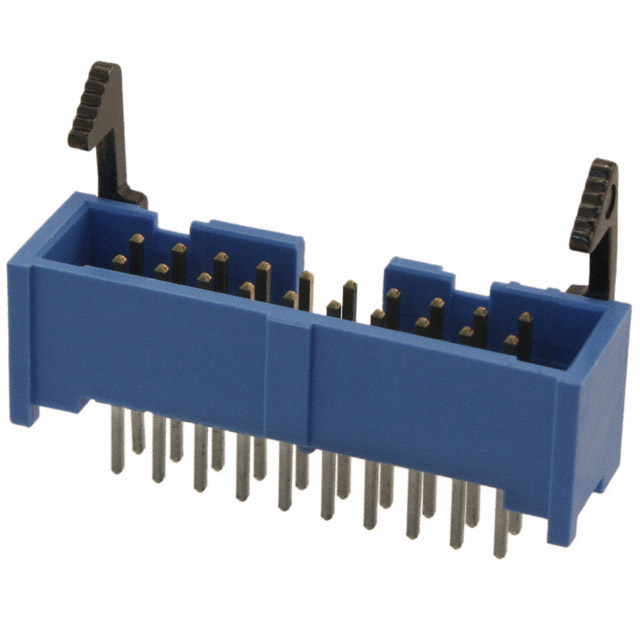

2-1761713-7
Or copy the link below:
- Mfr.Part #
- 2-1761713-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 2.54MM
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Depth :
- 6.35mm
- Lead Length :
- 4.11mm
- Mounting Type :
- Through Hole
- Height :
- 10.26mm
- PCB Mount Retention :
- Without
- PCB Mounting Orientation :
- Vertical
- Contact Material :
- Phosphor Bronze
- Contact Finish - Mating :
- Gold or Gold-Palladium
- Number of Rows :
- 2
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.237 6.02mm
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 20mOhm
- RoHS Status :
- RoHS Compliant
- Contact Type :
- Male Pin
- Insulation Height :
- 0.404 10.26mm
- Number of Positions :
- 20
- Housing Color :
- Blue
- Feature :
- Keying Slot
- Shrouded End Dimension :
- 3.76 mm
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- PBT
- Contact Finish - Post :
- Tin
- Style :
- Board to Cable/Wire
- Max Current Rating :
- 4A
- Factory Lead Time :
- 9 Weeks
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Insulation Color :
- Blue
- ELV :
- Compliant
- Connector Type :
- Header
- Packaging :
- Bulk
- Pitch - Mating :
- 0.100 2.54mm
- Max Operating Temperature :
- 75°C
- Termination :
- Solder
- Contact Plating :
- Tin
- Shrouding :
- Shrouded - 4 Wall
- Published :
- 2008
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Series :
- AMP-Latch
- Radiation Hardening :
- No
- Mount :
- Through Hole
- Circuit Application :
- Signal
- Length :
- 33.02mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Color :
- Blue
- Mating Connector Lock :
- With
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 2.54mm
- Contact Gender :
- Male
- Number of Contacts :
- 20
- Contact Length - Post :
- 0.162 4.11mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Positions Loaded :
- All
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Orientation :
- Vertical
- Min Operating Temperature :
- 0°C
- Datasheets
- 2-1761713-7
AMP-Latch Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold or Gold-Palladium Polybutylene Terephthalate (PBT) 20-Position Board to Cable/Wire 0.404 10.26mm Height
2-1761713-7 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the AMP-Latch Series of products.Whenever it's below 75°C, it's best to use it.The device must operate at a temperature of 0°C at all times.A number of features make it more powerful because of its Keying Slot feature.Through Hole mounts the part.
2-1761713-7 Features
AMP-Latch series
2-1761713-7 Applications
There are a lot of TE Connectivity AMP Connectors
2-1761713-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
