2-1761609-7
Or copy the link below:
- Mfr.Part #
- 2-1761609-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 20POS 2.54MM
- Stock
- 123
- In Stock ：
- 123
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Polarization Key :
- POLARIZED HOUSING
- PCB Mount Retention :
- Without
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2011
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Contact Finish - Mating :
- Gold or Gold-Palladium
- Shrouding :
- Shrouded - 4 Wall
- JESD-609 Code :
- e3
- Housing Color :
- Blue
- Voltage - Rated :
- 250VAC
- Orientation :
- RIGHT ANGLE
- Housing Material :
- PBT
- Connector Type :
- Header
- HTS Code :
- 8536.69.40.40
- Mounting Type :
- Through Hole, Right Angle
- Factory Lead Time :
- 9 Weeks
- Circuit Application :
- Signal
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Mounting Option 2 :
- LOCKING
- Reliability :
- COMMERCIAL
- Current Rating (Amps) :
- 1A per Contact
- Packaging :
- Tube
- PCB Contact Pattern :
- RECTANGULAR
- Contact Material :
- Phosphor Bronze
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Contact Finish - Post :
- Tin
- Length :
- 33.02mm
- Operating Temperature :
- -65°C~105°C
- Body Depth :
- 0.504 inch
- RoHS Status :
- RoHS Compliant
- Pbfree Code :
- yes
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Height :
- 0.362 9.20mm
- Number of Conductors :
- ONE
- Current Rating :
- 1A
- Operating Supply Voltage :
- 250V
- ECCN Code :
- EAR99
- MIL Conformance :
- No
- Number Of PCB Rows :
- 2
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Pitch - Mating :
- 0.100 2.54mm
- Option :
- GENERAL PURPOSE
- Mating Connector Lock :
- With
- Plating Thickness :
- 30μin
- Series :
- AMP-Latch
- DIN Conformance :
- No
- Contact Type :
- Male Pin
- Mating Contact Pitch :
- 0.1 inch
- Contact Shape :
- Square
- Feature :
- Keying Slot
- UL Flammability Code :
- 94V-0
- Filter Feature :
- No
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.102 2.60mm
- Contact Length - Mating :
- 0.237 6.02mm
- Number of Positions :
- 20
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Rows :
- 2
- Additional Feature :
- LOW PROFILE, LATCHED
- Reference Standard :
- UL
- Datasheets
- 2-1761609-7

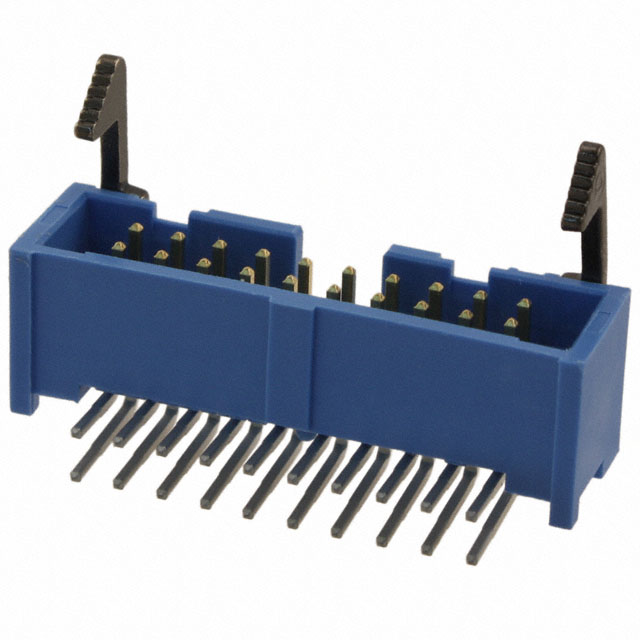

AMP-Latch Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold or Gold-Palladium Polybutylene Terephthalate (PBT) 20-Position Board to Cable/Wire 0.362 9.20mm Height
2-1761609-7 Overview
Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the AMP-Latch Series, it can be found in this category.There are also other features such as LOW PROFILE, LATCHED, to name only a few.With its Keying Slot feature, it is more powerful in many ways.The memory's operating supply voltage is 250V.The device is operating at -65°C~105°C Operating Temperature.
2-1761609-7 Features
AMP-Latch series
2-1761609-7 Applications
There are a lot of TE Connectivity AMP Connectors
2-1761609-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
