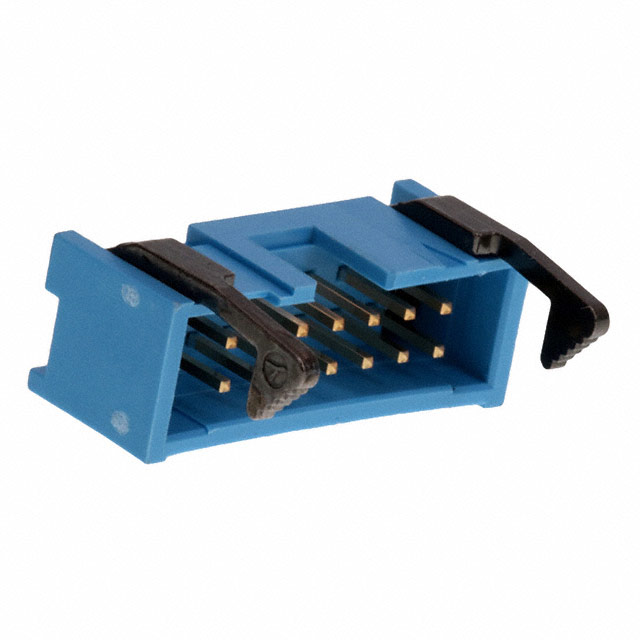

2-1761609-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Mating Connector Lock :

With

Reliability :

COMMERCIAL

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Style :

Board to Cable/Wire

Insulation Height :

0.362 9.20mm

Length :

25.4mm

Contact Finish - Post :

Tin

Housing Material :

PBT

Option :

GENERAL PURPOSE

Contact Finish Thickness - Post :

100.0μin 2.54μm

PCB Contact Pattern :

RECTANGULAR

Mount :

Through Hole

Contact Finish - Mating :

Gold or Gold-Palladium

Contact Length - Post :

0.102 2.60mm

Height :

9.19mm

Polarization Key :

POLARIZED HOUSING

JESD-609 Code :

e3

Fastening Type :

Latch Lock/Eject Hooks, Short

Operating Temperature :

-65°C~105°C

Mating Contact Pitch :

0.1 inch

Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Contact Gender :

Male

Contact Material :

Phosphor Bronze

Insulation Material :

Polybutylene Terephthalate (PBT)

Lead Length :

2.6mm

Pitch - Mating :

0.100 2.54mm

Radiation Hardening :

No

Orientation :

RIGHT ANGLE

REACH SVHC :

Unknown

Contact Length - Mating :

0.237 6.02mm

RoHS Status :

RoHS Compliant

Feature :

Keying Slot

ECCN Code :

EAR99

Operating Supply Voltage :

250V

PCB Mount Retention :

Without

Reference Standard :

UL

Number of Conductors :

ONE

MIL Conformance :

No

Termination :

Solder

Current Rating (Amps) :

1A per Contact

Packaging :

Tube

Additional Feature :

LOW PROFILE, LATCHED

Mounting Type :

Through Hole, Right Angle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Color :

Blue

Connector Type :

Header

Published :

2009

Current Rating :

1A

Filter Feature :

No

Voltage - Rated :

250VAC

UL Flammability Code :

94V-0

Contact Type :

Male Pin

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Number of Positions :

14

Mixed Contacts :

No

Factory Lead Time :

9 Weeks

Plating Thickness :

30μin

Shrouded End Dimension :

3.76 mm

PCB Mounting Orientation :

RIGHT ANGLE

Number of Positions Loaded :

All

Contact Shape :

Square

Body Depth :

0.504 inch

Contact Current Rating :

1A

Number of Rows :

2

DIN Conformance :

No

Row Spacing - Mating :

0.100 (2.54mm)

Number Of PCB Rows :

2

Circuit Application :

Signal

IEC Conformance :

No

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Insulation Resistance :

5GOhm

Max Voltage Rating (AC) :

250V

Series :

AMP-Latch

ELV :

Compliant
