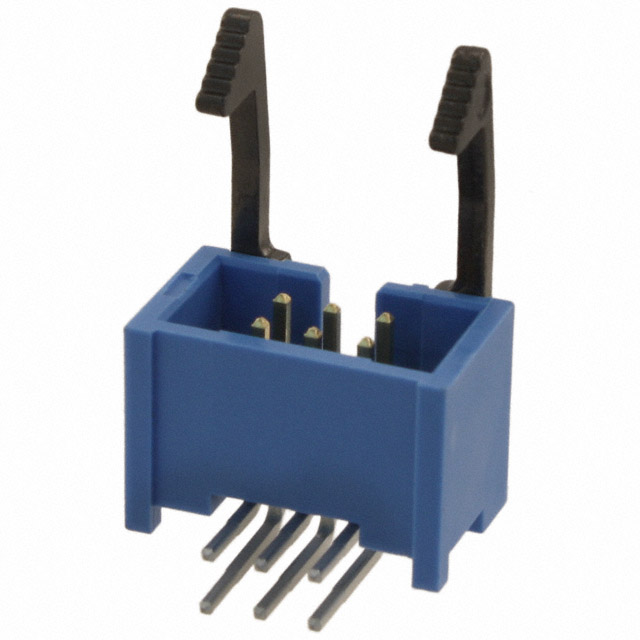

2-1761607-1
Or copy the link below:
- Mfr.Part #
- 2-1761607-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 6POS 2.54MM
- Stock
- 1,155
- In Stock ：
- 1,155
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header
- Mixed Contacts :
- No
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Gender :
- Male
- Feature :
- Keying Slot
- Published :
- 2009
- Operating Temperature :
- -65°C~105°C
- PCB Mounting Orientation :
- RIGHT ANGLE
- Mating Contact Pitch :
- 0.1 inch
- Radiation Hardening :
- No
- Insulation Height :
- 0.362 9.20mm
- JESD-609 Code :
- e3
- Mount :
- Through Hole
- Mating Connector Lock :
- Without
- Series :
- AMP-Latch
- Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Mounting Type :
- Through Hole, Right Angle
- PCB Contact Pattern :
- RECTANGULAR
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Length :
- 15.24mm
- Number of Positions :
- 6
- Housing Material :
- PBT
- Number of Rows :
- 2
- Contact Length - Mating :
- 0.237 6.02mm
- Factory Lead Time :
- 8 Weeks
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Termination :
- Solder
- Contact Length - Post :
- 0.102 2.60mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Shrouded End Dimension :
- 3.76 mm
- Contact Type :
- Male Pin
- Polarization Key :
- DUAL POLARIZED
- Current Rating :
- 1A
- Housing Color :
- Blue
- Packaging :
- Tube
- Contact Finish - Post :
- Tin
- Number of Positions Loaded :
- All
- Option :
- GENERAL PURPOSE
- UL Flammability Code :
- 94V-0
- Voltage - Rated :
- 250VAC
- Filter Feature :
- No
- Height :
- 9.19mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Orientation :
- RIGHT ANGLE
- Reference Standard :
- UL
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Lead Length :
- 2.6mm
- IEC Conformance :
- No
- Contact Finish - Mating :
- Gold or Gold-Palladium
- Number of Conductors :
- ONE
- Additional Feature :
- LATCHED, POLARIZED
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- MIL Conformance :
- No
- Insulation Resistance :
- 5GOhm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Material :
- Phosphor Bronze
- Shrouding :
- Shrouded - 4 Wall
- Contact Current Rating :
- 1A
- Number Of PCB Rows :
- 2
- Operating Supply Voltage :
- 250V
- DIN Conformance :
- No
- Current Rating (Amps) :
- 1A per Contact
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Reliability :
- COMMERCIAL
- Contact Shape :
- Square
- Datasheets
- 2-1761607-1
AMP-Latch Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold or Gold-Palladium Polybutylene Terephthalate (PBT) 6-Position Board to Cable/Wire 0.362 9.20mm Height
2-1761607-1 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tube.Product number AMP-Latch belongs to the AMP-Latch Series.Further, there are features such as LATCHED, POLARIZED, to name only a few.In many ways, it is more powerful due to its Keying Slot feature.There is a Through Hole mount on the part.A 250V voltage is used to supply power to this memory.This device operates at a temperature of -65°C~105°C.
2-1761607-1 Features
AMP-Latch series
2-1761607-1 Applications
There are a lot of TE Connectivity AMP Connectors
2-1761607-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
