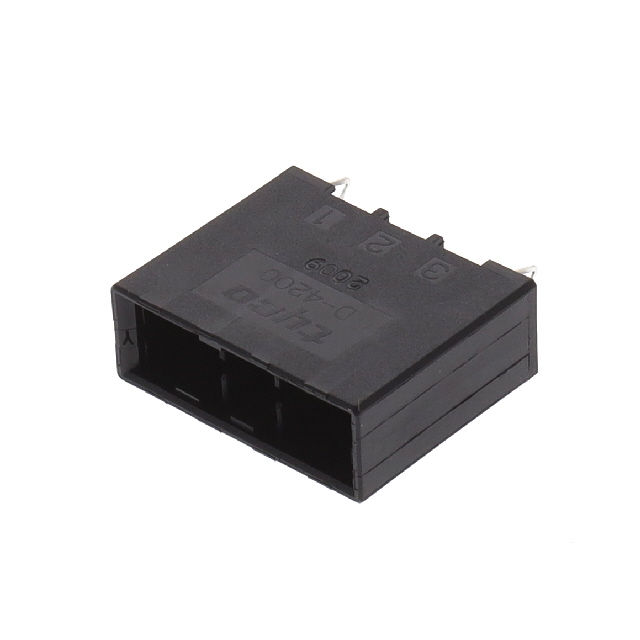

2-1747277-3
Or copy the link below:
- Mfr.Part #
- 2-1747277-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 6.35MM
- Stock
- 296
- In Stock ：
- 296
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Preloaded :
- yes
- Housing Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Applications :
- General Purpose, Industrial
- Plating :
- Gold
- Packaging :
- Bulk
- Length - Tail :
- 3.8mm
- Contact Plating :
- Gold, Tin
- Insulation Color :
- Black
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Contact Length - Post :
- 0.150 3.81mm
- Number of Rows :
- 1
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Number of Positions Loaded :
- All
- Width :
- 10.3886mm
- Contact Current Rating :
- 23A
- Sealable :
- No
- Mount :
- Through Hole
- Height :
- 23.8mm
- Termination :
- Solder
- Series :
- Dynamic D-4200
- Factory Lead Time :
- 23 Weeks
- Pitch - Mating :
- 0.250 6.35mm
- Pitch :
- 6.35mm
- Row Spacing :
- 6.35 mm
- Min Operating Temperature :
- -67°C
- Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- Published :
- 2011
- Contact Finish - Mating :
- Gold
- Housing Material :
- Polyester
- Mating Post Length :
- 10.8966mm
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Mounting Orientation :
- Vertical
- PCB Thickness :
- 2.4mm
- Length :
- 28.7mm
- Orientation :
- Vertical
- ELV :
- Compliant
- Contact Material :
- COPPER ALLOY
- Operating Supply Voltage :
- 600V
- Feature :
- Board Lock
- Contact Type :
- Tab
- Voltage - Rated :
- 600V
- PCB Mount Retention :
- With
- Current Rating :
- 23A
- PCB Mount Alignment :
- Without
- Operating Temperature :
- -55°C~105°C
- Shrouding :
- Shrouded - 4 Wall
- Number of Contacts :
- 3
- Insulation Material :
- Thermoplastic, Polyester, Glass Filled
- Contact Shape :
- RECTANGULAR
- Insulation Height :
- 0.937 23.80mm
- Connector Type :
- Header
- Fastening Type :
- Detent Lock
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mating Retention :
- With
- Max Operating Temperature :
- 221°C
- Plating Thickness :
- 380 nm
- Datasheets
- 2-1747277-3
Dynamic D-4200 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Thermoplastic, Polyester, Glass Filled 3-Position Board to Cable/Wire 0.937 23.80mm Height
2-1747277-3 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Dynamic D-4200 belongs to the Dynamic D-4200 Series.Whenever the temperature is below 221°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to General Purpose, Industrial, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.A 600V voltage is used to supply power to this memory.This device operates at a temperature of -55°C~105°C.
2-1747277-3 Features
Dynamic D-4200 series
2-1747277-3 Applications
There are a lot of TE Connectivity AMP Connectors
2-1747277-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
