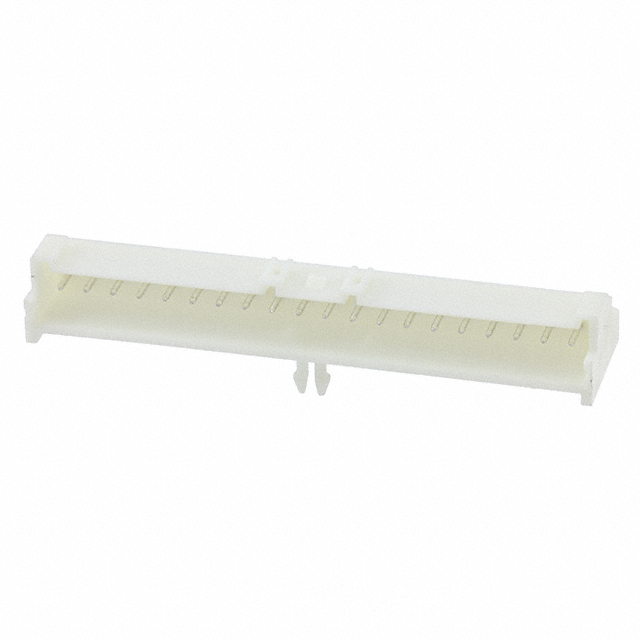

2-1744426-0
Or copy the link below:
- Mfr.Part #
- 2-1744426-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 20POS 2.5MM
- Stock
- 1,047
- In Stock ：
- 1,047
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch :
- 2.5mm
- Housing Color :
- Natural, White
- Voltage - Rated :
- 250VAC
- Fastening Type :
- Friction Lock
- Contact Length - Post :
- 0.126 3.20mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Length - Tail :
- 3.2mm
- Number of Positions :
- 20
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Kinked Pin, Solder
- Wire/Cable Type :
- Discrete
- Mounting Type :
- Through Hole, Right Angle
- RoHS Status :
- RoHS Compliant
- Contact Material :
- COPPER ALLOY
- Sealable :
- No
- Flammability Rating :
- UL94 V-0
- Plating :
- Tin
- Connector Type :
- Header
- Housing Material :
- Nylon
- Mount :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Type :
- Male Pin
- Number of Rows :
- 1
- Number of Positions Loaded :
- All
- Color :
- White
- Factory Lead Time :
- 16 Weeks
- Applications :
- General Purpose, Industrial, Lighting
- Current Rating (Amps) :
- 4.2A
- Packaging :
- Bulk
- PCB Mount Retention :
- With
- Contact Shape :
- Circular
- Mating Retention :
- With
- Pitch - Mating :
- 0.098 2.50mm
- Max Operating Temperature :
- 221°C
- Feature :
- Board Lock
- Operating Temperature :
- -55°C~105°C
- ELV :
- Compliant
- Insulation Color :
- White
- Operating Supply Voltage :
- 250V
- Orientation :
- RIGHT ANGLE
- Shrouding :
- Shrouded - 4 Wall
- Current Rating :
- 4.2A
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- PCB Mount Alignment :
- With
- Contact Length - Mating :
- 0.141 3.60mm
- Height :
- 7.6mm
- Length :
- 52.5mm
- Contact Finish - Mating :
- Tin
- Series :
- Economy Power 2.5
- Number of Contacts :
- 20
- Insulation Material :
- Polyamide (PA), Nylon
- Published :
- 2011
- Plating Thickness :
- 2.032μm
- Min Operating Temperature :
- -67°C
- Insulation Height :
- 0.299 7.60mm
- Contact Current Rating :
- 4.5A
- Contact Plating :
- Tin
- Datasheets
- 2-1744426-0
Economy Power 2.5 Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polyamide (PA), Nylon 20-Position Board to Cable/Wire 0.299 7.60mm Height
2-1744426-0 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number Economy Power 2.5 belongs to the Economy Power 2.5 Series.Whenever the temperature is below 221°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to General Purpose, Industrial, Lighting, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.A 250V voltage is used to supply power to this memory.This device operates at a temperature of -55°C~105°C.
2-1744426-0 Features
Economy Power 2.5 series
2-1744426-0 Applications
There are a lot of TE Connectivity AMP Connectors
2-1744426-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
