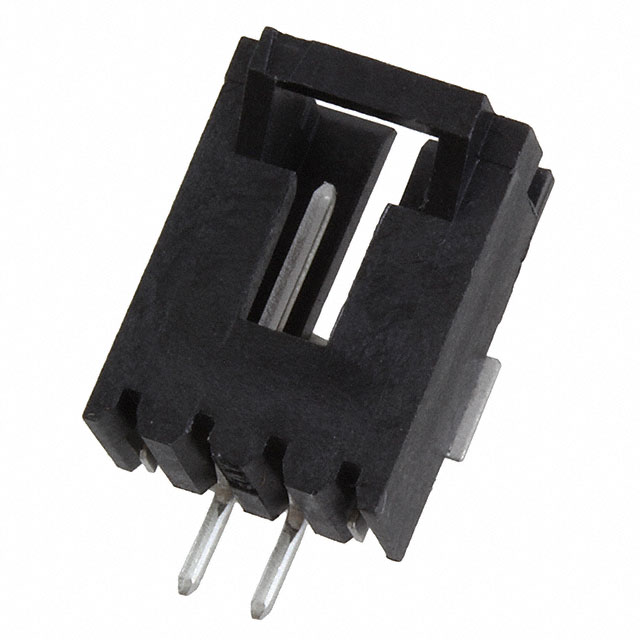

2-147324-5
Or copy the link below:
- Mfr.Part #
- 2-147324-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 2POS 2.54MM
- Stock
- 7,408
- In Stock ：
- 7,408
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 3A
- Contact Finish - Mating :
- Tin
- Contact Gender :
- Male
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tape and Reel (TR)
- Fastening Type :
- Latch Holder
- Contact Plating :
- Tin
- PCB Mount Alignment :
- Without
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 16 Weeks
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Operating Temperature :
- -65°C~105°C
- Plating :
- Tin
- Contact Finish - Post :
- Tin
- PCB Mounting Orientation :
- RIGHT ANGLE
- Insulation Material :
- Thermoplastic
- PCB Mount Retention :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mating Retention :
- With
- Housing Material :
- Thermoplastic
- Published :
- 2010
- Housing Color :
- Black
- Approval Agency :
- CSA
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.200 5.08mm
- Mount :
- Surface Mount
- Plating Thickness :
- 5.08μm
- Mounting Type :
- Surface Mount, Right Angle
- Shrouding :
- Shrouded - 4 Wall
- Connector Type :
- Header
- Radiation Hardening :
- No
- Pitch :
- 2.54mm
- Insulation Resistance :
- 5GOhm
- Contact Material :
- Brass
- Number of Rows :
- 1
- Termination :
- Solder
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Number of Contacts :
- 2
- Length - Tail :
- 3.048mm
- Length :
- 10.16mm
- Contact Length - Mating :
- 0.230 5.84mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Current Rating :
- 3A
- Series :
- AMPMODU MTE
- Pitch - Mating :
- 0.100 2.54mm
- Contact Shape :
- Square
- Mating Post Length :
- 5.842mm
- Flammability Rating :
- UL94 V-0
- Row Spacing :
- 2.54 mm
- Insulation Color :
- Black
- Height :
- 13.59mm
- ELV :
- Compliant
- Style :
- Board to Board or Cable
- Min Operating Temperature :
- -65°C
- RoHS Status :
- RoHS Compliant
- Contact Type :
- Male Pin
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Color :
- Black
- Number of Positions :
- 2
- Max Operating Temperature :
- 105°C
- Current Rating (Amps) :
- 3A
- Datasheets
- 2-147324-5
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Thermoplastic 2-Position Board to Board or Cable 0.200 5.08mm Height
2-147324-5 Overview
It comes in a Header package.Surface Mount, Right Angle is the mounting type of the device.We pack the product in a Tape & Reel (TR) case.This is from the AMPMODU MTE Series.The ideal temperature for using it is below 105°C.There must be a minimum temperature of -65°C.This device can be used for Automotive, General Purpose, Medical, Telecommunications.A number of advantages can be derived from its Board Lock, Keying Slot, Solder Retention feature.This part is mounted by Surface Mount. -65°C~105°C Operating Temperature is the default.
2-147324-5 Features
AMPMODU MTE series
2-147324-5 Applications
There are a lot of TE Connectivity AMP Connectors
2-147324-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
