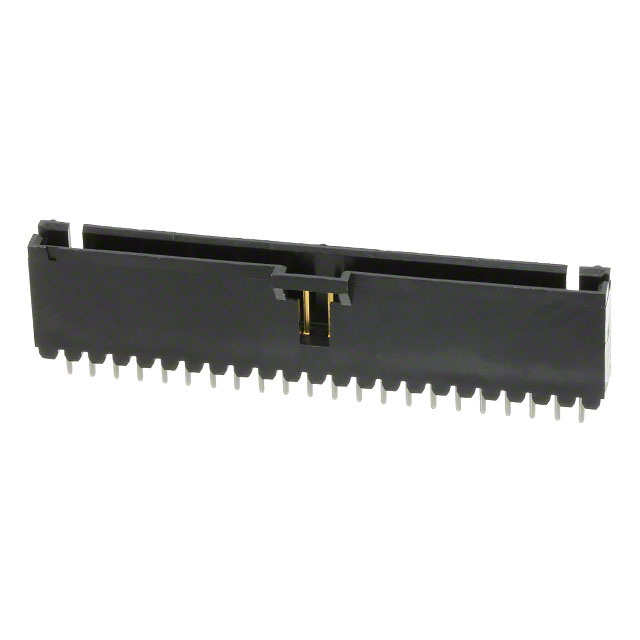

2-103638-1
Or copy the link below:
- Mfr.Part #
- 2-103638-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 22POS 2.54MM
- Stock
- 16,649
- In Stock ：
- 16,649
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Min Operating Temperature :
- -65°C
- Height :
- 13.59mm
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Color :
- Black
- Plating :
- Gold
- Contact Shape :
- Square
- Number of Positions :
- 22
- Series :
- AMPMODU MTE
- Approval Agency :
- CSA
- Insulation Color :
- Black
- Factory Lead Time :
- 11 Weeks
- Current Rating :
- 3A
- Pitch :
- 2.54mm
- Contact Plating :
- Gold
- Mount :
- Through Hole
- Length - Tail :
- 3.3mm
- Published :
- 2010
- Number of Rows :
- 1
- PCB Mount Alignment :
- Without
- PCB Mounting Orientation :
- Vertical
- Plating Thickness :
- 2.54μm
- Fastening Type :
- Latch Holder
- Termination :
- Solder
- Contact Finish - Post :
- Tin-Lead
- Connector Type :
- Header
- Orientation :
- Vertical
- Housing Color :
- Black
- Insulation Material :
- Thermoplastic
- Contact Length - Mating :
- 0.230 5.84mm
- Contact Current Rating :
- 3A
- Contact Material :
- Brass
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Length :
- 58.42mm
- Insulation Height :
- 0.535 13.60mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Shrouding :
- Shrouded - 4 Wall
- Packaging :
- Tube
- Number of Contacts :
- 22
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Pitch - Mating :
- 0.100 2.54mm
- RoHS Status :
- Non-RoHS Compliant
- ELV :
- Non-Compliant
- Mating Post Length :
- 5.842mm
- Lead Free :
- Contains Lead
- Insulation Resistance :
- 5GOhm
- Contact Length - Post :
- 0.130 3.30mm
- Radiation Hardening :
- No
- Housing Material :
- Thermoplastic
- Style :
- Board to Board or Cable
- Max Operating Temperature :
- 105°C
- Row Spacing :
- 2.54 mm
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flammability Rating :
- UL94 V-0
- Contact Gender :
- Male
- PCB Mount Retention :
- Without
- Number of Positions Loaded :
- All
- Mating Retention :
- With
- Feature :
- Keying Slot
- Datasheets
- 2-103638-1
AMPMODU MTE Series 1-Row Header Solder Brass Tube Through Hole Gold Thermoplastic 22-Position Board to Board or Cable 0.535 13.60mm Height
2-103638-1 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the AMPMODU MTE Series.Use it below 105°C.A minimum temperature of -65°C must be maintained for the operation of this device.There is the possibility of using the device for Automotive, General Purpose, Medical, Telecommunications.In many ways, Keying Slot makes it more powerful.By Through Hole, the part is mounted.
2-103638-1 Features
AMPMODU MTE series
2-103638-1 Applications
There are a lot of TE Connectivity AMP Connectors
2-103638-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
