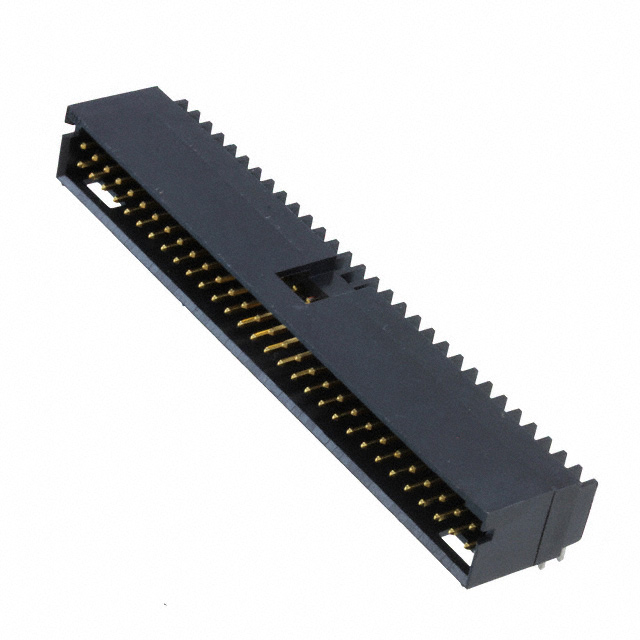

2-103166-8
Or copy the link below:
- Mfr.Part #
- 2-103166-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 60POS 2.54MM
- Stock
- 44,131
- In Stock ：
- 44,131
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Mating Contact Pitch :
- 0.1 inch
- Orientation :
- RIGHT ANGLE
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Shrouding :
- Shrouded - 4 Wall
- Packaging :
- Tray
- PCB Mounting Orientation :
- RIGHT ANGLE
- Option :
- GENERAL PURPOSE
- Number of Positions :
- 60
- Fastening Type :
- Detent Lock
- Contact Type :
- Male Pin
- UL Flammability Code :
- 94V-0
- Contact Length - Post :
- 0.135 3.43mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- DIN Conformance :
- No
- JESD-609 Code :
- e0
- Contact Current Rating :
- 3A
- Lead Length :
- 3.429mm
- Approval Agency :
- CSA
- Insulation Height :
- 0.400 10.16mm
- Body Breadth :
- 0.413 inch
- PCB Contact Pattern :
- RECTANGULAR
- Mounting Type :
- Through Hole, Right Angle
- Mating Post Length :
- 8.08mm
- Published :
- 2009
- Body Depth :
- 0.639 inch
- Mount :
- Through Hole
- Style :
- Board to Board or Cable
- Plating Thickness :
- 30μin
- Shrouded End Dimension :
- 1.68 mm
- Number of Conductors :
- ONE
- RoHS Status :
- Non-RoHS Compliant
- Housing Color :
- Black
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Square
- Length - Termination :
- 0.135 inch
- Contact Material :
- Phosphor Bronze
- Lead Free :
- Contains Lead
- Filter Feature :
- No
- Contact Gender :
- Male
- Factory Lead Time :
- 12 Weeks
- ELV :
- Non-Compliant
- IEC Conformance :
- No
- Operating Temperature :
- -65°C~105°C
- Number of Rows :
- 2
- Series :
- AMPMODU Mod II
- Contact Finish - Post :
- Tin-Lead
- Number of Positions Loaded :
- All
- HTS Code :
- 8536.69.40.40
- Mixed Contacts :
- No
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Rated Current (Signal) :
- 3A
- Reliability :
- COMMERCIAL
- Number Of PCB Rows :
- 2
- Connector Type :
- Header
- Insulation Resistance :
- 5GOhm
- Material Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 1050VAC V
- PCB Thickness :
- 1.397mm
- Insulation Material :
- Thermoplastic
- Contact Length - Mating :
- 0.318 8.08mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- High Speed Serial Data Connector :
- No
- MIL Conformance :
- No
- Polarization Key :
- POLARIZED HOUSING
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2-103166-8
2-103166-8 Documents
AMPMODU Mod II Series 2-Row Header Solder Phosphor Bronze Tray Through Hole, Right Angle Gold Thermoplastic 60-Position Board to Board or Cable 0.400 10.16mm Height
2-103166-8 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the AMPMODU Mod II Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-65°C~105°C Operating Temperature is the default operating temperature for the device.
2-103166-8 Features
AMPMODU Mod II series
2-103166-8 Applications
There are a lot of TE Connectivity AMP Connectors
2-103166-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
