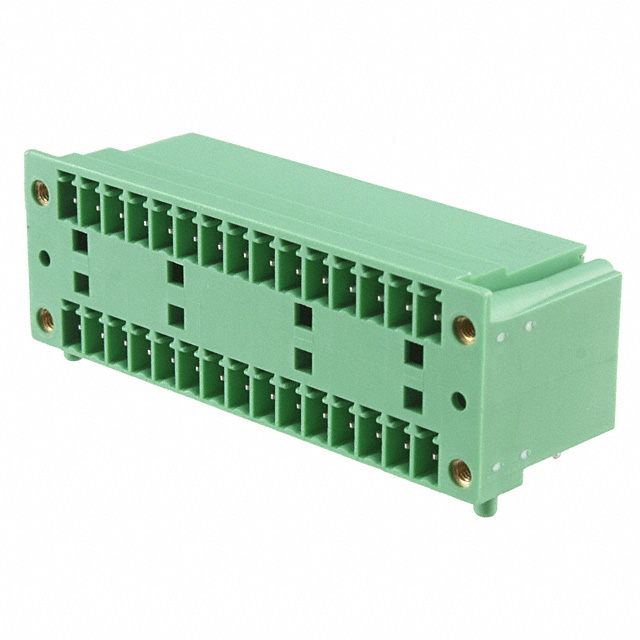

1843059
Or copy the link below:
- Mfr.Part #
- 1843059
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 30POS 3.81MM
- Stock
- 28
- In Stock ：
- 28
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Packaging :
- Bulk
- Type :
- Header, Male Pins, Shrouded (4 Side)
- HTS Code :
- 8536.69.40.40
- Number of Positions :
- 30
- Voltage :
- 300V
- Termination Style :
- Solder
- Published :
- 2010
- Current :
- 8A
- Feature :
- Board Guide, Mating Flange
- Voltage - UL :
- 300V
- Pbfree Code :
- yes
- Number of Rows :
- 1
- Number of Positions Per Level :
- 15
- Header Orientation :
- 90°, Right Angle
- Voltage - Rated :
- 160V
- Current Rating :
- 8A
- RoHS Status :
- RoHS Compliant
- Series :
- COMBICON MCD
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Pitch :
- 0.150 3.81mm
- Contact Mating Finish :
- Tin
- Safety Approval :
- UL
- Contact Tail Length :
- 0.138 3.50mm
- Voltage - IEC :
- 320V
- Lead Free :
- Lead Free
- Mounting Type :
- Through Hole
- Number of Ways :
- 15
- Insulation Height :
- 0.894 22.71mm
- Depth :
- 3mm
- Number of Decks :
- 1
- Weight :
- 117.000013g
- Factory Lead Time :
- 4 Weeks
- Additional Feature :
- PBT, 94V-0
- Number of Levels :
- 2
- Material Flammability Rating :
- UL94 V-0
- Length :
- 3mm
- Color :
- Green
- Mount :
- Through Hole
- Housing Material :
- Polyamide (PA), Nylon
- Datasheets
- 1843059
Bulk 0.150 3.81mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCD Polyamide (PA), Nylon Tin
1843059 Overview
There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON MCD belongs to the COMBICON MCD Series.Further, there are features such as PBT, 94V-0, to name only a few.In many ways, it is more powerful due to its Board Guide, Mating Flange feature.There is a Through Hole mount on the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
1843059 Features
COMBICON MCD series
1843059 Applications
There are a lot of Phoenix Contact
1843059 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
