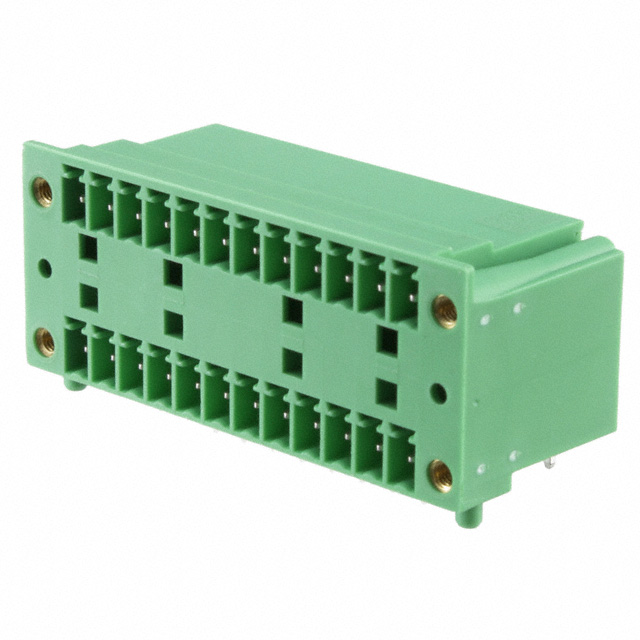

1843017
Or copy the link below:
- Mfr.Part #
- 1843017
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 24POS 3.81MM
- Stock
- 5,051
- In Stock ：
- 5,051
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Number of Rows :
- 1
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Termination Style :
- Solder
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polyamide (PA), Nylon
- Color :
- Green
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Header Orientation :
- 90°, Right Angle
- HTS Code :
- 8536.69.40.40
- Weight :
- 117.000013g
- Number of Levels :
- 2
- Length :
- 21.9mm
- Factory Lead Time :
- 4 Weeks
- Fastening Method :
- Connector
- Voltage :
- 300V
- Insulation Height :
- 0.894 22.71mm
- Series :
- COMBICON MCD
- Number of Decks :
- 1
- Pitch :
- 0.150 3.81mm
- Height :
- 26.2mm
- Safety Approval :
- CB; CSA; CUL; EAC; EN; VDE; UL
- Connector Type :
- PLUG
- Current Rating :
- 8A
- Width :
- 56.11mm
- Lead Free :
- Lead Free
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Flammability Rating :
- UL94 V-0
- Feature :
- Board Guide, Mating Flange
- Number of Positions :
- 24
- Additional Feature :
- STANDARD: UL94V-0, PA
- ECCN Code :
- EAR99
- Number of Ways :
- 12
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 160V
- Voltage - IEC :
- 320V
- Reach Compliance Code :
- not_compliant
- Positions Per Level :
- 12
- Current :
- 8A
- Contact Tail Length :
- 0.138 3.50mm
- Contact Plating :
- Tin
- Published :
- 2015
- Datasheets
- 1843017
Bulk 0.150 3.81mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCD Polyamide (PA), Nylon
1843017 Overview
It comes in Plug packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MCD Series of products.In addition, there are other features such as STANDARD: UL94V-0, PA, to mention only a few.Its Board Guide, Mating Flange feature renders it more powerful in many ways.The part is mounted by Through Hole.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
1843017 Features
COMBICON MCD series
1843017 Applications
There are a lot of Phoenix Contact
1843017 Terminal Blocks applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
