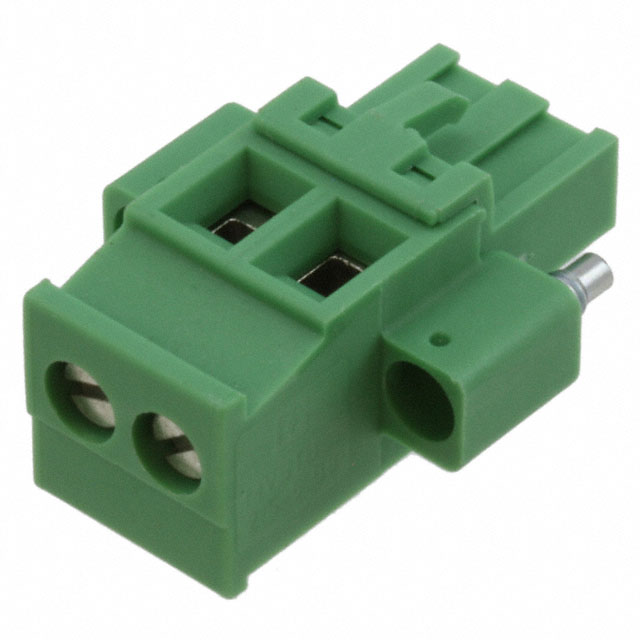

1835096

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Current :

10A

Height :

20.32mm

Orientation :

Straight

Number of Rows :

1

Termination Style :

Screw - Rising Cage Clamp

Series :

COMBICON MVSTBR

Max Current Rating :

12A

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Wire Gauge or Range - AWG :

12-30 AWG

Published :

2010

Packaging :

Bulk

Voltage - IEC :

630V

Housing Color :

Green

Positions Per Level :

2

Plug Wire Entry :

90°

Screw Size :

M3

Contact Material :

Tin

Weight :

133.000002g

Number of Circuits :

2

Wire Gauge (Max) :

30 AWG

Voltage - UL :

300V

Feature :

Mating Flange, Retention Latches (Wire Side)

Current - IEC :

12A

Factory Lead Time :

4 Weeks

Color :

Green

Contact Plating :

Tin

Current Rating :

12A

Length :

12.6mm

RoHS Status :

RoHS Compliant

Number of Levels :

1

Current - UL :

15A

Wire Gauge or Range - mm² :

0.2-2.5mm2

Voltage - Rated :

250V

Wire Strip Length :

7mm

Number of Positions Per Level :

2

Width :

26mm

Material Flammability Rating :

UL94 V-0

Mount :

Free Hanging, Panel

Pitch :

0.200 5.08mm

Housing Material :

Polyamide (PA), Nylon

Voltage :

300V

Number of Positions :

2

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Type :

Plug, Female Sockets

Insulation Height :

1.024 26.01mm

Contact Mating Finish :

Tin

Termination :

Screw

Mounting Type :

Free Hanging (In-Line)

Wire Gauge (Min) :

12 AWG

Connector Type :

Screw, Socket

Lead Free :

Lead Free

Number of Contacts :

2
