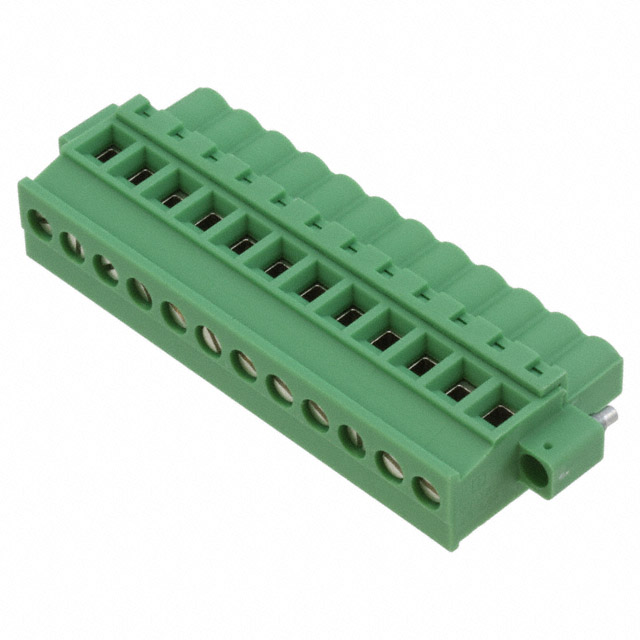

1835009
Or copy the link below:
- Mfr.Part #
- 1835009
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 12POS 5.08MM
- Stock
- 12,361
- In Stock ：
- 12,361
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Wire Strip Length :
- 7mm
- ECCN Code :
- EAR99
- Contact Plating :
- Tin
- Wire Gauge (Max) :
- 30 AWG
- Connector Type :
- Socket
- Height :
- 26mm
- Voltage - IEC :
- 630V
- Current :
- 10A
- Current - UL :
- 15A
- Material Flammability Rating :
- UL94 V-0
- Wire Gauge or Range - AWG :
- 12-30 AWG
- Safety Approval :
- UL
- Insulation Height :
- 1.024 26.01mm
- Additional Feature :
- PA, 94V-0
- Voltage :
- 300V
- Plug Wire Entry :
- 270°
- Lead Free :
- Lead Free
- Color :
- Green
- Mount :
- Free Hanging
- Voltage - Rated :
- 250V
- Pitch :
- 0.200 5.08mm
- Torque - Screw :
- 0.5-0.6 Nm (4.4-5.3 Lb-In)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Min) :
- 12 AWG
- Number of Decks :
- 1
- Published :
- 2003
- Number of Positions :
- 12
- Screw Size :
- M3
- Housing Material :
- Polyamide (PA), Nylon
- Number of Ways :
- 12
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 4 Weeks
- Length :
- 12.6mm
- RoHS Status :
- RoHS Compliant
- Width :
- 71.12mm
- Termination :
- Screw
- Type :
- Plug, Female Sockets
- Number of Rows :
- 1
- Packaging :
- Bulk
- Pbfree Code :
- yes
- Mounting Type :
- Free Hanging (In-Line)
- Series :
- COMBICON MVSTBW
- HTS Code :
- 8536.69.40.40
- Weight :
- 133.000002g
- Current Rating :
- 12A
- Wire Gauge or Range - mm² :
- 0.2-2.5mm2
- Wire Cross Section :
- 2.5 mm2
- Feature :
- Mating Flange, Retention Latches (Non-Wire Side)
- Number of Levels :
- 1
- Termination Style :
- Screw - Rising Cage Clamp
- Datasheets
- 1835009
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MVSTBW Polyamide (PA), Nylon
1835009 Overview
Packaging is Socket.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the COMBICON MVSTBW Series, it can be found in this category.There are also other features such as PA, 94V-0, to name only a few.With its Mating Flange, Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.In this case, Free Hanging mounts the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
1835009 Features
COMBICON MVSTBW series
1835009 Applications
There are a lot of Phoenix Contact
1835009 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
