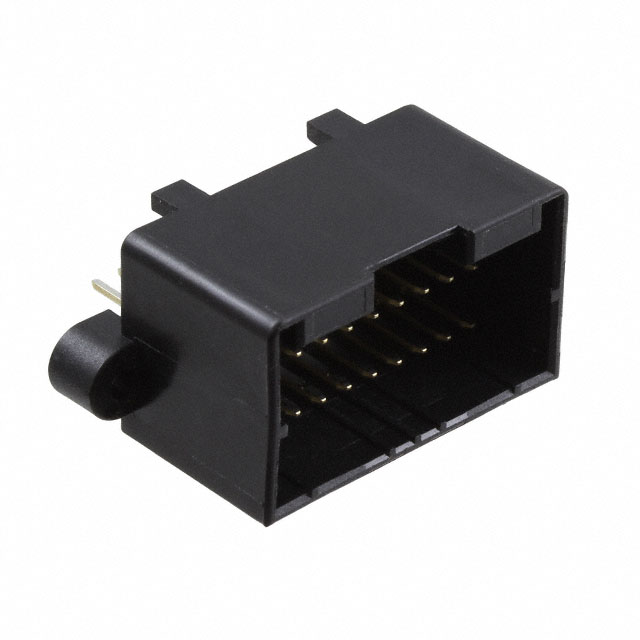

174977-2
Or copy the link below:
- Mfr.Part #
- 174977-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 2.5MM
- Stock
- 3,092
- In Stock ：
- 3,092
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Feature :
- Mounting Flange
- Tab Thickness :
- 640μm
- Mixed Contacts :
- No
- Circuit Application :
- Signal
- Mount :
- Through Hole
- Shrouding :
- Shrouded - 4 Wall
- Filter Feature :
- No
- Contact Resistance :
- 20mOhm
- Fastening Type :
- Locking Ramp
- Shielding :
- Unshielded
- Contact Type :
- Tab
- Length :
- 16.891mm
- Series :
- Multi-Lock
- Depth :
- 16.9mm
- Insulation Height :
- 0.756 19.20mm
- Additional Feature :
- MULTILOCK
- Applications :
- Automotive, General Purpose
- Style :
- Board to Cable/Wire
- Connector Type :
- Receptacle, Tab
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 19 Weeks
- MIL Conformance :
- No
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Row Spacing - Mating :
- 0.205 (5.20mm)
- Current Rating :
- 8A
- Pbfree Code :
- yes
- Width :
- 37.5mm
- IEC Conformance :
- No
- Orientation :
- Vertical
- Number of Positions Loaded :
- All
- Width - Tab :
- 1mm
- Mounting Type :
- Through Hole
- Max Voltage Rating (DC) :
- 12V
- Insulation Resistance :
- 100Ohm
- Housing Color :
- Black
- Number of Signal Positions :
- 20
- DIN Conformance :
- No
- Contact Gender :
- Male
- Empty Shell :
- No
- Number of Rows :
- 2
- Pitch - Mating :
- 0.098 2.50mm
- Published :
- 1999
- Radiation Hardening :
- No
- PCB Thickness :
- 1.6mm
- Flammability Rating :
- UL94 HB
- Contact Material :
- Brass
- Packaging :
- Tube
- Operating Temperature :
- -30°C~105°C
- Housing Material :
- Polybutylene
- Gender :
- Receptacle
- Current Rating (Amps) :
- Varies by WireGAuge
- RoHS Status :
- RoHS Compliant
- Contact Shape :
- RECTANGULAR
- Contact Length - Mating :
- 0.276 7.00mm
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Length - Post :
- 0.146 3.70mm
- Datasheets
- 174977-2
Multi-Lock Series 2-Row Receptacle, Tab Solder Brass Tube Through Hole Tin Polybutylene Terephthalate (PBT) Board to Cable/Wire 0.756 19.20mm Height
174977-2 Overview
A Receptacle, Tab package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the Multi-Lock Series of products.Additionally, there are other features, such as MULTILOCK.It is possible for the device to be used for the application Automotive, General Purpose.A number of features make it more powerful because of its Mounting Flange feature.Through Hole mounts the part.There is no operating temperature for the device.
174977-2 Features
Multi-Lock series
174977-2 Applications
There are a lot of TE Connectivity AMP Connectors
174977-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
