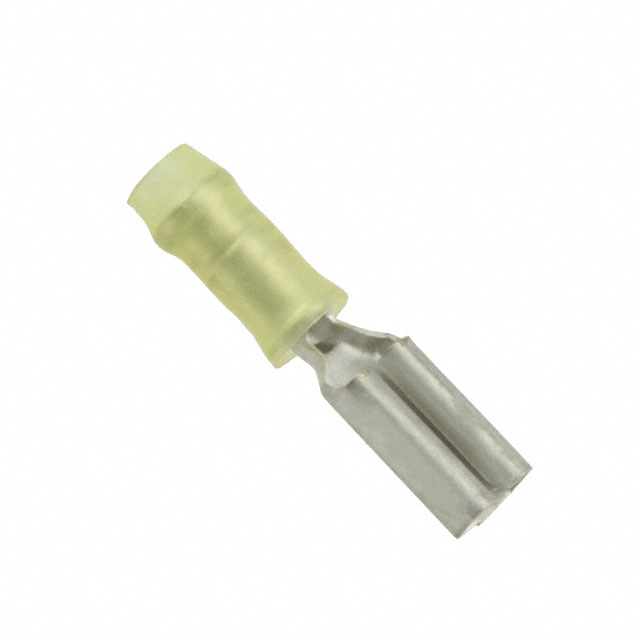

165619-2
Or copy the link below:
- Mfr.Part #
- 165619-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 22-26AWG 0.110
- Stock
- 19,096
- In Stock ：
- 19,096
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Insulation :
- Non-Mating End Insulated
- Lead Free :
- Not Applicable
- Color :
- Yellow
- Length - Tab :
- 0.248 6.30mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Wire Gauge (Max) :
- 26 AWG
- Published :
- 2004
- ECCN Code :
- EAR99
- RoHS Status :
- RoHS Compliant
- Orientation :
- Straight
- Wire Gauge :
- 22-26 AWG
- Length - Overall :
- 0.685 17.40mm
- Factory Lead Time :
- 11 Weeks
- Width - Tab :
- 0.110 2.79mm
- Connector Type :
- Tab
- Wire Gauge (Min) :
- 22 AWG
- Contact Plating :
- Tin
- Length :
- 17.399mm
- Insulated Wire Support :
- yes
- Wire/Cable Gauge :
- 26 AWG
- Sealable :
- No
- Gender :
- FEMALE
- Tab Thickness :
- 0.032 0.81mm
- Mating Tab Width :
- 2.794mm
- Contact Material :
- Brass
- Series :
- Faston, PIDG
- Insulation Material :
- Nylon
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Wire Cross Section :
- 0.35 mm2
- Termination :
- Crimp
- HTS Code :
- 8536.90.40.00
- Packaging :
- Bulk
- Insulation Diameter :
- 0.043 ~ 0.083 (1.10mm ~ 2.11mm)
- Terminal Type :
- Standard
- Mounting Type :
- Free Hanging (In-Line)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Pbfree Code :
- yes
- Mount :
- Free Hanging
- Datasheets
- 165619-2
165619-2 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
