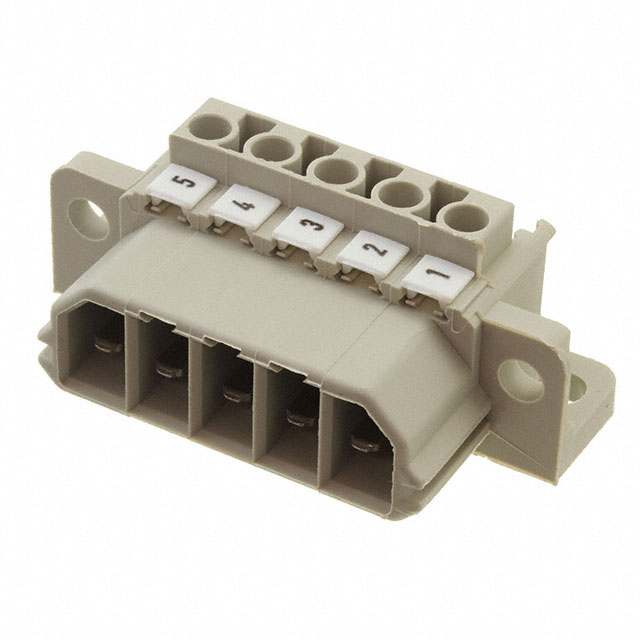

1612040000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Number of Contacts :

5

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

Max Current Rating :

25A

Filter Feature :

No

Published :

2008

Length :

30.2mm

Type :

Plug, Blade Pins

Wire Gauge or Range - AWG :

12-22 AWG

Width :

21.4mm

Series :

Powermate STV

Lead Free :

Lead Free

Pitch :

0.276 7.00mm

Ingress Protection :

IP20

Orientation :

RIGHT ANGLE

Radiation Hardening :

No

Shell Material :

Polyamide

Gender :

Male

Mount :

Free Hanging, Panel

Wire Gauge (Min) :

12 AWG

Operating Temperature :

-50°C~100°C

Current :

25A

Number of Levels :

1

Voltage - Rated :

300V

Mixed Contacts :

No

Factory Lead Time :

12 Weeks

Approval Agency :

CSA, UR

Option :

GENERAL PURPOSE

DIN Conformance :

No

Contact Material :

COPPER ALLOY

RoHS Status :

RoHS Compliant

Color :

Gray

Pbfree Code :

yes

UL Flammability Code :

94V-0

MIL Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Plug Wire Entry :

180°

Packaging :

Bulk

Housing Material :

Thermoplastic, Wemid

Moisture Sensitivity Level (MSL) :

Not Applicable

Material Flammability Rating :

UL94 V-0

REACH SVHC :

Unknown

JESD-609 Code :

e4

Contact Mating Finish :

Silver

Housing Color :

Grey

IEC Conformance :

No

Wire Gauge (Max) :

22 AWG

Screw Size :

M3

Insulation Height :

0.843 21.41mm

Stripping Length :

9mm

Current Rating :

32A

Voltage - IEC :

1kV

Empty Shell :

No

Wire/Cable Gauge :

12 AWG

Feature :

Mating Flange

Current - IEC :

32A

ECCN Code :

EAR99

Voltage :

600V

Termination :

Screw

Wire Gauge or Range - mm² :

0.5-4mm2

Flammability Rating :

UL94 V-0

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)
