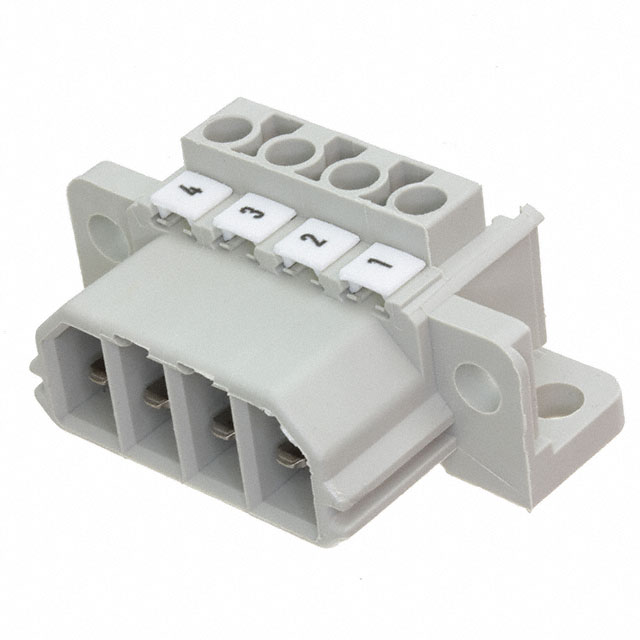

1612010000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Series :

Powermate STV

RoHS Status :

RoHS Compliant

Flammability Rating :

UL94 V-0

JESD-609 Code :

e4

Pbfree Code :

yes

Termination :

Screw

Number of Levels :

1

Wire Gauge (Min) :

12 AWG

Housing Material :

Thermoplastic, Wemid

Stripping Length :

9mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Wire/Cable Gauge :

12 AWG

Plug Wire Entry :

180°

Type :

Plug, Blade Pins

Contact Material :

COPPER ALLOY

Approval Agency :

CSA, UR

Operating Temperature :

-50°C~100°C

Mixed Contacts :

No

Radiation Hardening :

No

Contact Mating Finish :

Silver

Packaging :

Bulk

Orientation :

RIGHT ANGLE

Published :

2008

Filter Feature :

No

Feature :

Mating Flange

Lead Free :

Lead Free

Current :

25A

Material Flammability Rating :

UL94 V-0

Wire Gauge (Max) :

22 AWG

Shell Material :

Polyamide

DIN Conformance :

No

IEC Conformance :

No

Wire Gauge or Range - mm² :

0.5-4mm2

Screw Size :

M3

Length :

30.2mm

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Current - IEC :

32A

Wire Gauge or Range - AWG :

12-22 AWG

Voltage - IEC :

1kV

MIL Conformance :

No

Width :

21.4mm

Mounting Type :

Free Hanging (In-Line)

Current Rating :

32A

Option :

GENERAL PURPOSE

Number of Contacts :

4

Voltage - Rated :

300V

Housing Color :

Grey

Contact Gender :

Male

Empty Shell :

No

Voltage :

600V

Color :

Gray

Ingress Protection :

IP20

Mount :

Free Hanging, Panel

Insulation Height :

0.843 21.41mm

Pitch :

0.276 7.00mm

Factory Lead Time :

12 Weeks
