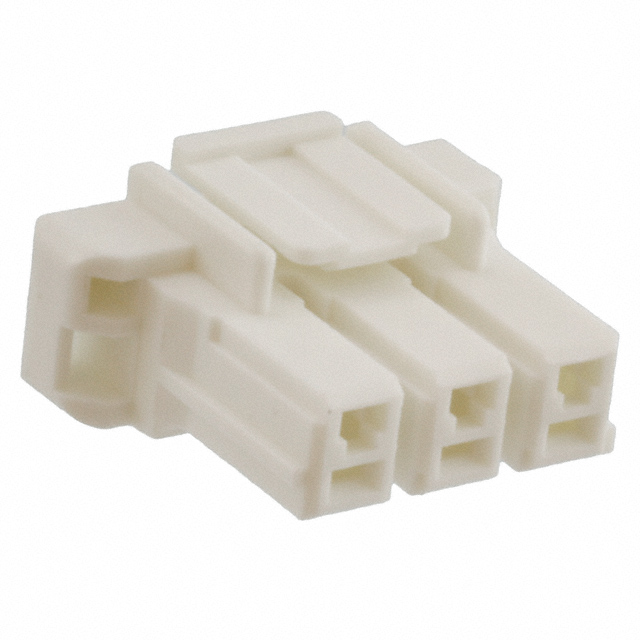

1376389-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

RoHS Status :

RoHS Compliant

Depth :

16.2mm

Length :

20mm

Max Voltage Rating (AC) :

300V

Insertion Force-Max :

9.7856 N

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

Pitch :

0.197 5.00mm

Connector Type :

PLUG

Factory Lead Time :

28 Weeks

Wire Gauge (Min) :

16 AWG

Height :

9.6mm

ELV :

Compliant

Number of Power Positions :

0

Published :

2007

Color :

Natural

Gender :

Male

MIL Conformance :

No

Contact Type :

Female Socket

Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Series :

Power Key

Approval Agency :

CSA

Shell Material :

GLASS FILLED POLYAMIDE66

Contact Current Rating :

10A

Sealable :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

Current Rating :

10A

Empty Shell :

No

Housing Material :

Nylon

Mixed Contacts :

No

Number of Conductors :

ONE

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Width :

16.2052mm

Min Operating Temperature :

-22°C

DIN Conformance :

No

Durability :

25 Cycles

Contact Retention :

Without

Mounting Type :

Free Hanging (In-Line)

Fastening Type :

Latch Lock

Mount :

Cable, Free Hanging

Wire Gauge (Max) :

24 AWG

Number of Rows :

1

Operating Supply Voltage :

300V

Insulation Diameter :

3.1 mm

Note :

Contacts Not Included

Lead Free :

Not Applicable

Max Operating Temperature :

221°C

Filter Feature :

No

Packaging :

Bulk

Number of Positions :

3

Pbfree Code :

yes

Wire/Cable Gauge :

24 AWG

Contact Termination :

Crimp

Total Number of Contacts :

3

IEC Conformance :

No
