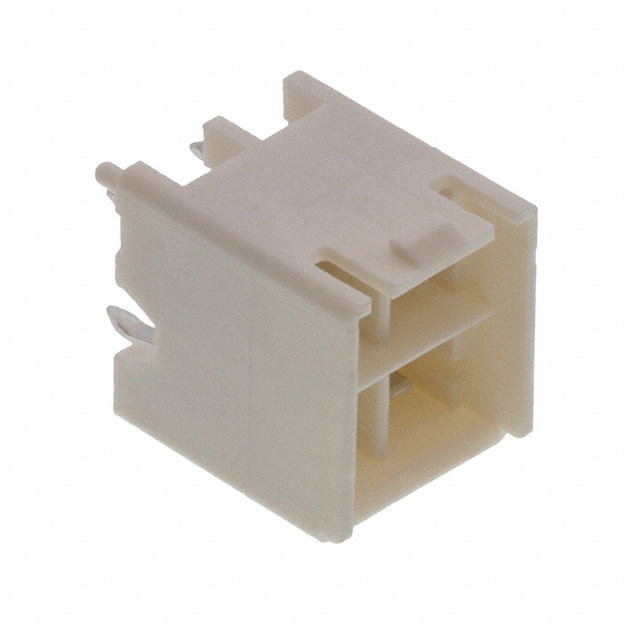

1376386-1
Or copy the link below:
- Mfr.Part #
- 1376386-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 5MM
- Stock
- 110
- In Stock ：
- 110
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Shape :
- RECTANGULAR
- Sealable :
- No
- Series :
- Power Key
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Pitch - Mating :
- 0.197 5.00mm
- Material :
- Nylon
- Reference Standard :
- UL
- Operating Temperature :
- -40°C~105°C
- Contact Length - Post :
- 0.138 3.50mm
- Approval Agency :
- CSA, UL
- Contact Type :
- Tab
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Through Hole
- Mixed Contacts :
- yes
- ELV :
- Compliant
- Applications :
- GENERAL PURPOSE
- Number of Positions Loaded :
- All
- Current Rating :
- 9A
- Row Spacing - Mating :
- 0.244 (6.20mm)
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Power Positions :
- 4
- Width :
- 14.1mm
- Housing Color :
- Natural
- Packaging :
- Bulk
- Length :
- 11.6mm
- Insertion Force-Max :
- 9.7856 N
- Length - Tail :
- 3.5mm
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.555 14.10mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Finish - Mating :
- Tin
- Published :
- 2008
- Termination :
- Kinked Pin, Solder
- Number of Rows :
- 2
- Contact Material :
- COPPER ALLOY
- DIN Conformance :
- No
- Mating Post Length :
- 6.3mm
- IEC Conformance :
- No
- ECCN Code :
- EAR99
- MIL Conformance :
- No
- Number of Signal Positions :
- 0
- Number of Conductors :
- ONE
- Voltage - Rated :
- 300VAC
- Operating Supply Voltage :
- 300V
- Contact Retention :
- Without
- Factory Lead Time :
- 15 Weeks
- Style :
- Board to Cable/Wire
- Mounting Option 1 :
- FRICTION RAMP
- Pbfree Code :
- yes
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Locking Ramp
- Feature :
- Board Guide, Glow Wire Compliant
- Stack Height (Mating) :
- 19.4mm
- Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Board Mounting Option :
- PEG
- Circuit Application :
- Power
- Plating Thickness :
- 800 nm
- Flammability Rating :
- UL94 V-0
- Orientation :
- Vertical
- Datasheets
- 1376386-1
Power Key Series 2-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled Board to Cable/Wire 0.555 14.10mm Height
1376386-1 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Power Key Series.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Guide, Glow Wire Compliant feature.It runs on 300V voltage.Devices operate at -40°C~105°C operating temperatures.
1376386-1 Features
Power Key series
1376386-1 Applications
There are a lot of TE Connectivity AMP Connectors
1376386-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
