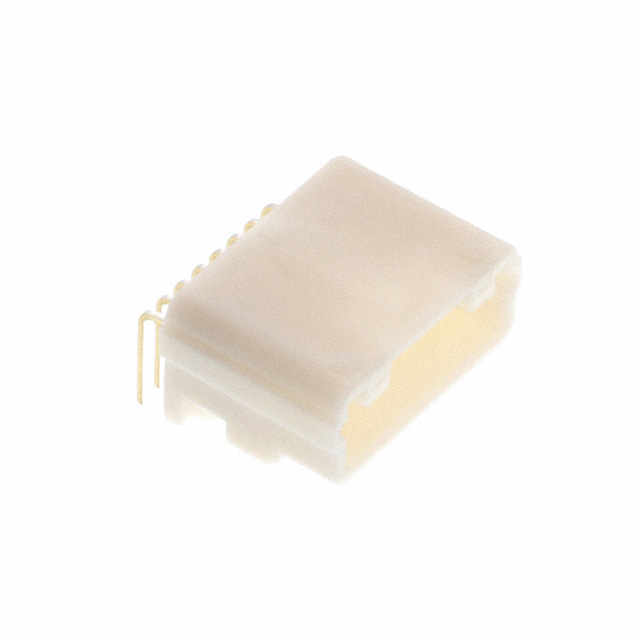

1376366-2
Or copy the link below:
- Mfr.Part #
- 1376366-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 2.2MM
- Stock
- 44,400
- In Stock ：
- 44,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Tab Thickness :
- 640μm
- Shielding :
- Unshielded
- Orientation :
- RIGHT ANGLE
- Connector Type :
- Header
- Contact Length - Mating :
- 0.217 5.50mm
- Contact Material :
- Brass
- Lead Free :
- Lead Free
- Published :
- 2009
- Contact Shape :
- Square
- Mounting Type :
- Through Hole, Right Angle
- Operating Temperature :
- -30°C~100°C
- Flammability Rating :
- UL94 HB
- Insulation Height :
- 0.492 12.50mm
- Number of Positions Loaded :
- All
- Max Voltage Rating (DC) :
- 12V
- Factory Lead Time :
- 20 Weeks
- Contact Type :
- Male Pin
- Termination :
- Solder
- Feature :
- Mounting Brackets
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tube
- Length :
- 21.97mm
- Housing Color :
- Natural
- Style :
- Board to Cable/Wire
- Number of Signal Positions :
- 8
- Fastening Type :
- Latch Holder
- PCB Thickness :
- 1.6mm
- Pitch - Mating :
- 0.087 2.20mm
- Number of Rows :
- 1
- ELV :
- Compliant
- Circuit Application :
- Signal
- Contact Finish - Mating :
- Tin
- Width :
- 24.003mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Post :
- 0.157 4.00mm
- Mount :
- Through Hole
- Width - Tab :
- 635μm
- Datasheets
- 1376366-2
1-Row Header Solder Brass Tube Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.492 12.50mm Height
1376366-2 Overview
Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.In many ways, its Mounting Brackets feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -30°C~100°C Operating Temperature.
1376366-2 Features
1376366-2 Applications
There are a lot of TE Connectivity AMP Connectors
1376366-2 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
