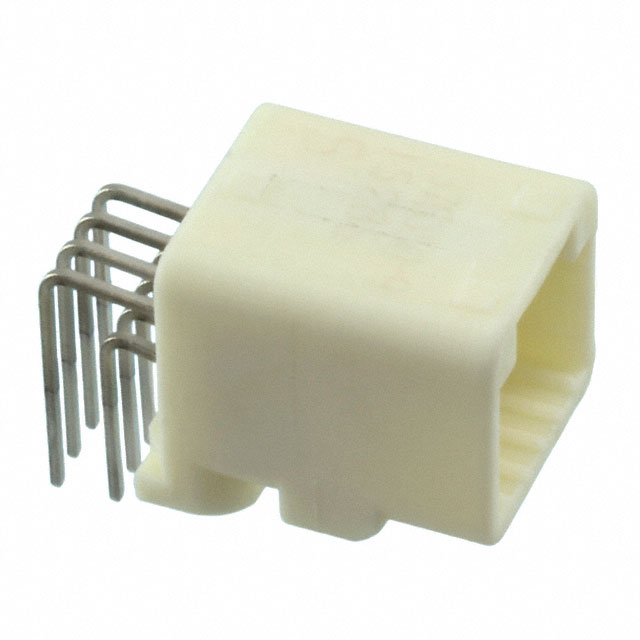

1376350-9
Or copy the link below:
- Mfr.Part #
- 1376350-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 2.2MM
- Stock
- 596
- In Stock ：
- 596
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Length - Post :
- 0.157 4.00mm
- PCB Thickness :
- 1.6mm
- Insulation Material :
- Syndiotactic Polystyrene (SPS), Glass Filled
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Polystyrene
- Number of Rows :
- 2
- Connector Type :
- Header
- Length :
- 24.4602mm
- Tab Thickness :
- 640μm
- Depth :
- 24.47mm
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Termination :
- Solder
- Contact Shape :
- Square
- Lead Free :
- Lead Free
- ECCN Code :
- EAR99
- Contact Material :
- Brass
- Voltage - Rated :
- 12VDC
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Natural
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Shrouding :
- Shrouded - 4 Wall
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Through Hole, Right Angle
- Published :
- 2004
- Number of Signal Positions :
- 8
- Contact Length - Mating :
- 0.217 5.50mm
- Radiation Hardening :
- No
- Shielding :
- Unshielded
- Factory Lead Time :
- 19 Weeks
- Circuit Application :
- Signal
- Pitch - Mating :
- 0.087 2.20mm
- Packaging :
- Tube
- Flammability Rating :
- UL94 HB
- Insulation Height :
- 0.610 15.49mm
- Max Voltage Rating (DC) :
- 12V
- Number of Positions Loaded :
- All
- Feature :
- Mounting Flange
- Width :
- 14.1986mm
- Mount :
- Through Hole
- Fastening Type :
- Latch Holder
- ELV :
- Compliant
- Contact Finish - Mating :
- Tin
- Width - Tab :
- 635μm
- Operating Temperature :
- -30°C~105°C
- Applications :
- Automotive
- Contact Type :
- Male Pin
- Datasheets
- 1376350-9
2-Row Header Solder Brass Tube Through Hole, Right Angle Tin Syndiotactic Polystyrene (SPS), Glass Filled Board to Cable/Wire 0.610 15.49mm Height
1376350-9 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tube.In addition to Automotive, there are other possible applications for the device.In many ways, it is more powerful due to its Mounting Flange feature.There is a Through Hole mount on the part.This device operates at a temperature of -30°C~105°C.
1376350-9 Features
1376350-9 Applications
There are a lot of TE Connectivity AMP Connectors
1376350-9 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
