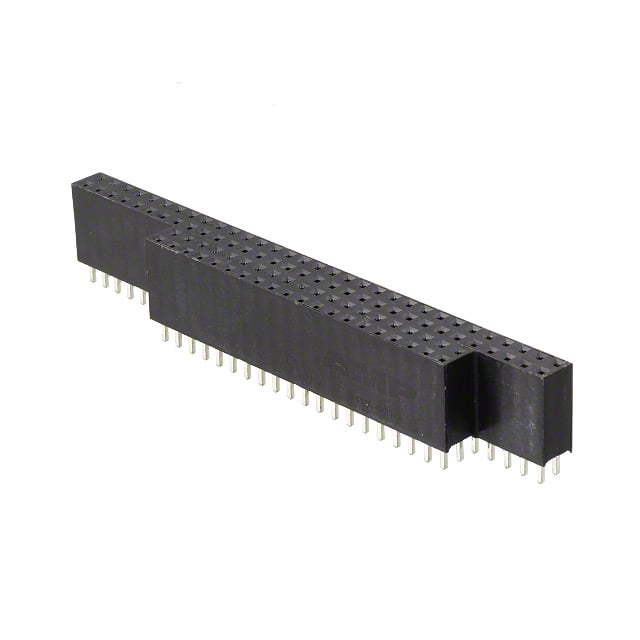

Mfr.Part #
1375963-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN NON-STKTHRU PC/104 104P PCB
Stock
257
In Stock :
257

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Specialized
PCB Contact Pattern :
RECTANGULAR
RoHS Status :
Non-RoHS Compliant
Reliability :
COMMERCIAL
Packaging :
Bulk
Orientation :
Straight
Contact Style :
SQ PIN-SKT
Mounting Type :
Through Hole
Factory Lead Time :
28 Weeks
Gender :
Receptacle
Pitch :
0.100 2.54mm
Pbfree Code :
No
Filter Feature :
No
Depth :
9.9mm
Dielectric Withstanding Voltage :
500VAC V
Connector Type :
Non-Stackthrough, Unkeyed (PC/104)
Contact Material :
Bronze
Reference Standard :
UL
Insertion Force-Max :
1.3622 N
ELV :
Non-Compliant
Number of Conductors :
ONE
Durability :
50 Cycles
Mount :
Through Hole
Published :
2008
Number Of PCB Rows :
4
Length :
81.6mm
Body Breadth :
0.39 inch
Rated Current (Signal) :
2A
Plating Thickness :
15μin
Lead Free :
Contains Lead
Color :
Black
Option :
GENERAL PURPOSE
DIN Conformance :
No
Operating Temperature :
-55°C~105°C
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Insulation Resistance :
1GOhm
Termination :
Solder
Housing Material :
Nylon
Number of Rows :
4
Total Number of Contacts :
104
Contact Finish :
Gold
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Material Flammability Rating :
UL94 V-0
Number of Positions :
104
Flammability Rating :
UL94 V-0
ECCN Code :
EAR99
Series :
AMPMODU
Lead Length :
3.0226mm
Polarization Key :
POLARIZED HOUSING
IEC Conformance :
No
Number of Positions Loaded :
All
Mixed Contacts :
No
MIL Conformance :
No
Contact Resistance :
30mOhm
Connector Style :
PC/104
Mating Contact Row Spacing :
0.1 inch
Contact Finish Thickness :
15.0μin 0.38μm
Contact Pattern :
RECTANGULAR
Keyed :
No
Datasheets
1375963-2
Introducing Specialized TE Connectivity AMP Connectors 1375963-2 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-55°C~105°C, 1375963-2 pinout, 1375963-2 datasheet PDF, 1375963-2 amp .Beyond Specialized TE Connectivity AMP Connectors 1375963-2 ,we also offer 6469025-1, 1892787-6, 0761703038, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 1375963-2


AMPMODU Series Non-Stackthrough, Unkeyed (PC/104) Solder Gold Black 15.0μin 0.38μm 104 Positions Pitch: 0.100 2.54mm -55°C~105°C Bulk Through Hole

1375963-2 Overview


It comes in Non-Stackthrough, Unkeyed (PC/104) packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the AMPMODU Series of products.The part is mounted by Through Hole.The device runs in -55°C~105°C Operating Temperature.

1375963-2 Features


AMPMODU series


1375963-2 Applications


There are a lot of TE Connectivity AMP Connectors
1375963-2 Backplane Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
