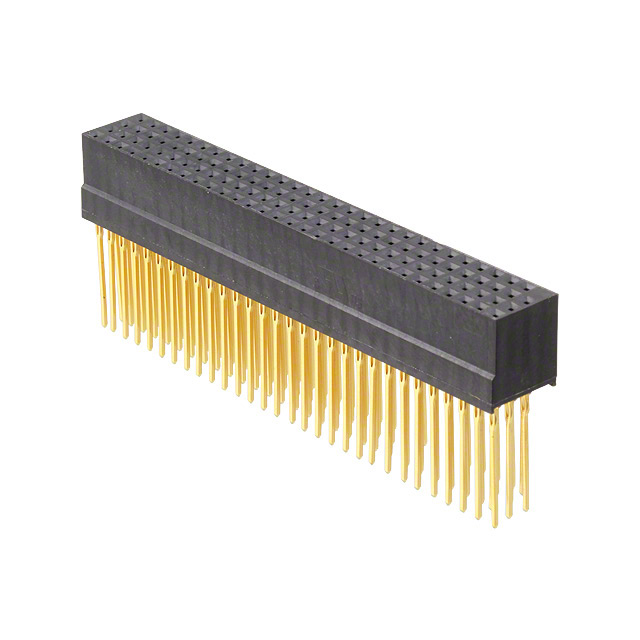

1375799-3
Or copy the link below:
- Mfr.Part #
- 1375799-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN STKTHRU PC/104+ 120POS PCB
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Style :
- SQ PIN-SKT
- Contact Pattern :
- RECTANGULAR
- Body/Shell Style :
- PLUG
- Lead Free :
- Not Applicable
- ELV :
- Compliant
- Number of Positions :
- 120
- Filter Feature :
- No
- Contact Resistance :
- 30mOhm
- Plating Thickness :
- 15μin
- Published :
- 2008
- Dielectric Withstanding Voltage :
- 500VAC V
- Number Of PCB Rows :
- 4
- Packaging :
- Bulk
- PCB Contact Row Spacing :
- 2.0066 mm
- Number of Rows :
- 4
- Number of Conductors :
- ONE
- Option :
- GENERAL PURPOSE
- Reliability :
- COMMERCIAL
- Keyed :
- yes
- Pitch :
- 0.079 2.00mm
- PCB Contact Pattern :
- RECTANGULAR
- Flammability Rating :
- UL94 V-0
- Connector Style :
- PC/104 Plus
- MIL Conformance :
- No
- IEC Conformance :
- No
- Mating Contact Row Spacing :
- 0.079 inch
- Insulation Resistance :
- 1GOhm
- Pbfree Code :
- yes
- Gender :
- Receptacle
- Depth :
- 8mm
- Rated Current (Signal) :
- 2A
- Insertion Force-Max :
- 1.251 N
- Contact Finish Thickness :
- 15.0μin 0.38μm
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~105°C
- Termination :
- Press-Fit, Long Post
- Total Number of Contacts :
- 119
- Orientation :
- Straight
- Factory Lead Time :
- 28 Weeks
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Withdrawl Force-Min :
- .6672 N
- Contact Material :
- Bronze
- Mount :
- Press Fit, Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Lead Length :
- 12.5222mm
- Reference Standard :
- UL, CSA
- Color :
- Black
- Number of Positions Loaded :
- 119
- Body Breadth :
- 0.33 inch
- Contact Finish :
- Gold
- Connector Type :
- Stackthrough, Keyed (PC/104)
- Mixed Contacts :
- No
- Housing Material :
- Nylon
- Length :
- 60.3mm
- Durability :
- 50 Cycles
- Series :
- AMPMODU
- Datasheets
- 1375799-3
AMPMODU Series Stackthrough, Keyed (PC/104) Press-Fit, Long Post Gold Black 15.0μin 0.38μm 120 Positions Pitch: 0.079 2.00mm -55°C~105°C Bulk Through Hole
1375799-3 Overview
Currently, it is packaged in Stackthrough, Keyed (PC/104).Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the AMPMODU Series, it is one of the most popular.Press Fit, Through Hole is the mounting point for the part.-55°C~105°C Operating Temperature is used by the device.
1375799-3 Features
AMPMODU series
1375799-3 Applications
There are a lot of TE Connectivity AMP Connectors
1375799-3 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
