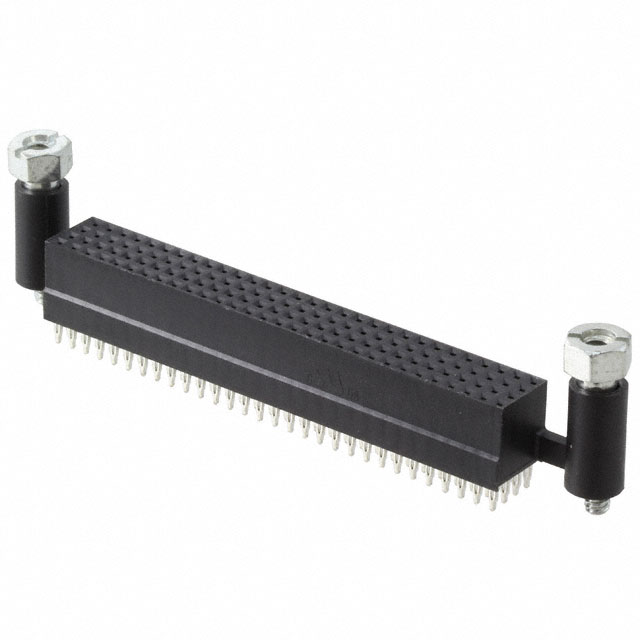

1375798-4
Or copy the link below:
- Mfr.Part #
- 1375798-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN NON-STKTHR PC/104+ 120P PCB
- Stock
- 12,896
- In Stock ：
- 12,896
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Current Rating :
- 3A
- Keyed :
- No
- Connector Type :
- Non-Stackthrough, Unkeyed (PC/104)
- Total Number of Contacts :
- 120
- Insulation Resistance :
- 1GOhm
- Gender :
- Receptacle
- Termination :
- Press-Fit
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2008
- Filter Feature :
- No
- Pbfree Code :
- yes
- Operating Temperature :
- -55°C~105°C
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Connector Style :
- PC/104 Plus
- Contact Material :
- Bronze
- Number of Rows :
- 4
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Color :
- Black
- ELV :
- Compliant
- Contact Finish :
- Gold
- DIN Conformance :
- No
- Option :
- GENERAL PURPOSE
- Series :
- AMPMODU
- IEC Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Orientation :
- Straight
- Factory Lead Time :
- 28 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Lead Length :
- 2.8448mm
- Approval Agency :
- cULus
- Pitch :
- 0.079 2.00mm
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Number of Positions :
- 120
- Feature :
- Screwlocks (2)
- Housing Material :
- Nylon
- Mount :
- Press Fit, Through Hole
- REACH SVHC :
- Unknown
- Mounting Type :
- Through Hole
- Datasheets
- 1375798-4
AMPMODU Series Non-Stackthrough, Unkeyed (PC/104) Press-Fit Gold Black 15.0μin 0.38μm 120 Positions Pitch: 0.079 2.00mm -55°C~105°C Bulk Through Hole
1375798-4 Overview
Currently, it is packaged in Non-Stackthrough, Unkeyed (PC/104).The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the AMPMODU Series, it belongs to the range of products of that series.A number of features make the Screwlocks (2) feature more powerful.Press Fit, Through Hole represents the mounting point for the part.-55°C~105°C Operating Temperature is the default operating temperature for the device.
1375798-4 Features
AMPMODU series
1375798-4 Applications
There are a lot of TE Connectivity AMP Connectors
1375798-4 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
