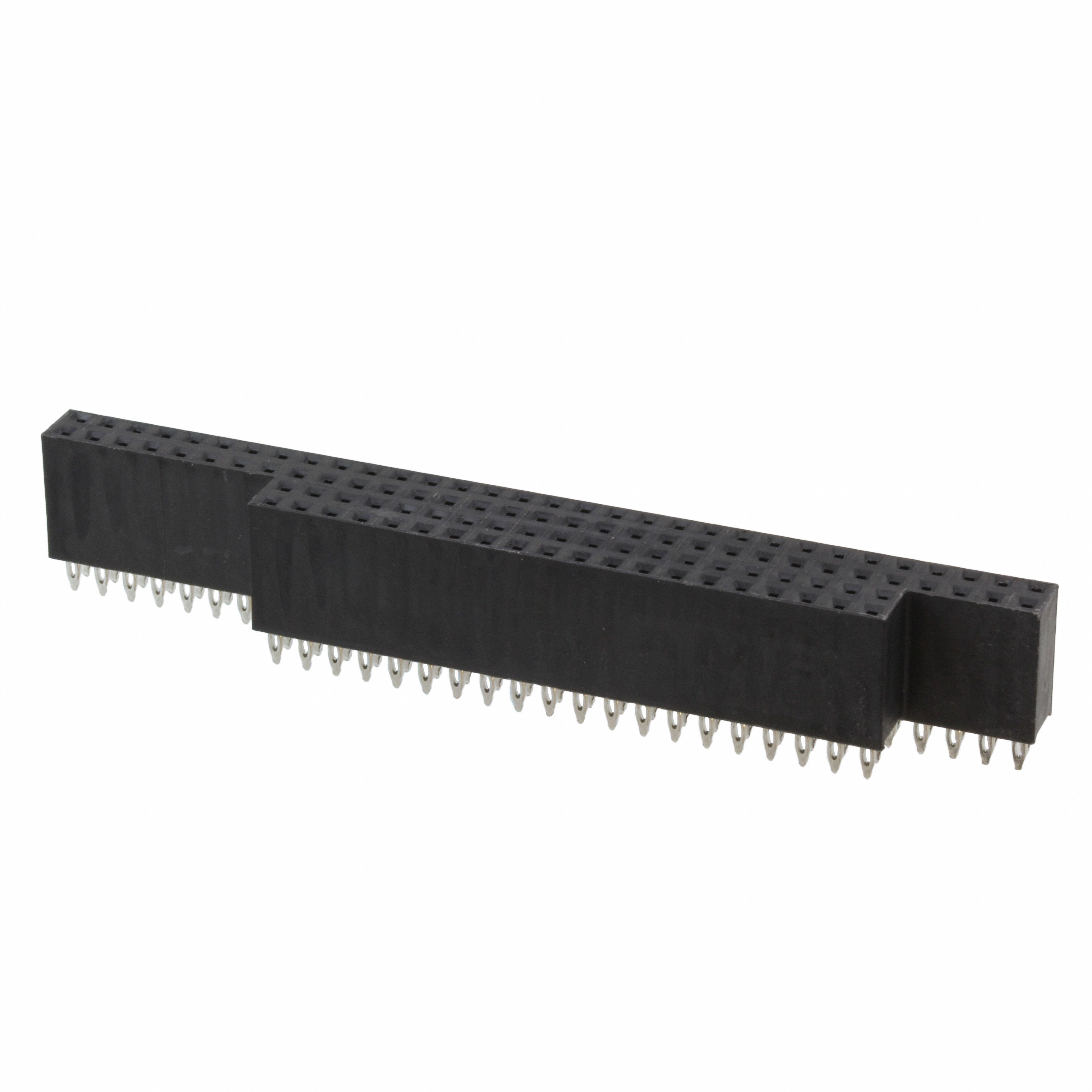

1375796-2
Or copy the link below:
- Mfr.Part #
- 1375796-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN NON-STKTHRU PC/104 104P PCB
- Stock
- 1,767
- In Stock ：
- 1,767
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Lead Length :
- 3.0226mm
- DIN Conformance :
- No
- Depth :
- 9.9mm
- Insertion Force-Max :
- 1.39 N
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Number Of PCB Rows :
- 4
- ECCN Code :
- EAR99
- Body Breadth :
- 0.39 inch
- Mating Contact Row Spacing :
- 0.1 inch
- Operating Temperature :
- -55°C~105°C
- Pitch :
- 0.100 2.54mm
- Rated Current (Signal) :
- 2A
- Connector Type :
- Non-Stackthrough, Unkeyed (PC/104)
- Series :
- AMPMODU
- Connector Style :
- PC/104
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Contact Finish :
- Gold
- Number of Conductors :
- ONE
- Polarization Key :
- ENDS
- Contact Resistance :
- 10MOhm
- Pbfree Code :
- yes
- Orientation :
- Straight
- Number of Positions :
- 104
- Dielectric Withstanding Voltage :
- 500VAC V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Press Fit, Through Hole
- Contact Style :
- SQ PIN-SKT
- ELV :
- Non-Compliant
- Gender :
- Receptacle
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Contains Lead
- Insulation Resistance :
- 1GOhm
- Color :
- Black
- MIL Conformance :
- No
- Contact Pattern :
- RECTANGULAR
- Number of Positions Loaded :
- All
- Durability :
- 50 Cycles
- Termination :
- Press-Fit
- Packaging :
- Bulk
- Keyed :
- No
- Mixed Contacts :
- No
- Housing Material :
- Nylon
- Body Length or Diameter :
- 3.213 inch
- Total Number of Contacts :
- 104
- Mounting Type :
- Through Hole
- Filter Feature :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Plating Thickness :
- 15μin
- Published :
- 2008
- RoHS Status :
- Non-RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 18 Weeks
- Reference Standard :
- UL, CSA
- Contact Material :
- Bronze
- Number of Rows :
- 4
- IEC Conformance :
- No
- Length - Termination :
- 0.119 inch
- Option :
- GENERAL PURPOSE
- Datasheets
- 1375796-2
1375796-2 Documents
AMPMODU Series Non-Stackthrough, Unkeyed (PC/104) Press-Fit Gold Black 15.0μin 0.38μm 104 Positions Pitch: 0.100 2.54mm -55°C~105°C Bulk Through Hole
1375796-2 Overview
It comes in Non-Stackthrough, Unkeyed (PC/104) packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the AMPMODU Series of products.The part is mounted by Press Fit, Through Hole.The device runs in -55°C~105°C Operating Temperature.
1375796-2 Features
AMPMODU series
1375796-2 Applications
There are a lot of TE Connectivity AMP Connectors
1375796-2 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
