Mfr.Part #
1375795-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN STKTHRU PC/104 104POS PCB
Stock
5
In Stock :
5

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Specialized
Operating Temperature :
-55°C~105°C
Body Breadth :
0.39 inch
Series :
AMPMODU
Number of Positions :
104
Factory Lead Time :
15 Weeks
Current Rating :
3A
Max Current Rating :
3A
Insulation Resistance :
1GOhm
Contact Resistance :
10MOhm
Contact Finish :
Gold
Published :
2008
Additional Feature :
POLARZIED
Keyed :
yes
Depth :
9.9mm
Lead Length :
12.2682mm
Number of Rows :
4
Rated Current (Signal) :
2A
Radiation Hardening :
No
RoHS Status :
RoHS Compliant
Width :
9.91mm
Color :
Black
Pitch :
0.100 2.54mm
Connector Style :
PC/104
Contact Style :
SQ PIN-SKT
ELV :
Compliant
Contact Material :
Bronze
Durability :
50 Cycles
Height :
11.05mm
Number of Conductors :
ONE
Dielectric Withstanding Voltage :
500VAC V
Flammability Rating :
UL94 V-0
Material Flammability Rating :
UL94 V-0
MIL Conformance :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Gender :
Receptacle
Length :
81.6mm
Mixed Contacts :
No
IEC Conformance :
No
Mounting Type :
Through Hole
Reliability :
COMMERCIAL
DIN Conformance :
No
Option :
GENERAL PURPOSE
Number Of PCB Rows :
4
Number of Positions Loaded :
102
Reference Standard :
UL
Voltage - Rated :
250V
Approval Agency :
cULus
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Orientation :
Straight
Plating Thickness :
15μin
Filter Feature :
No
Total Number of Contacts :
102
Contact Pattern :
RECTANGULAR
Packaging :
Bulk
Pbfree Code :
yes
Termination :
Press-Fit, Long Post
Lead Free :
Lead Free
Connector Type :
Stackthrough, Keyed (PC/104)
Contact Finish Thickness :
15.0μin 0.38μm
Polarization Key :
ENDS
Mount :
Press Fit, Through Hole
PCB Contact Pattern :
RECTANGULAR
Housing Material :
Nylon
Datasheets
1375795-1
Introducing Specialized TE Connectivity AMP Connectors 1375795-1 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~105°C, Mounting Type:Through Hole, 1375795-1 pinout, 1375795-1 datasheet PDF, 1375795-1 amp .Beyond Specialized TE Connectivity AMP Connectors 1375795-1 ,we also offer 6469025-1, 1892787-6, 0761703038, Our vast inventory has you covered. Contact us now for immediate solutions.

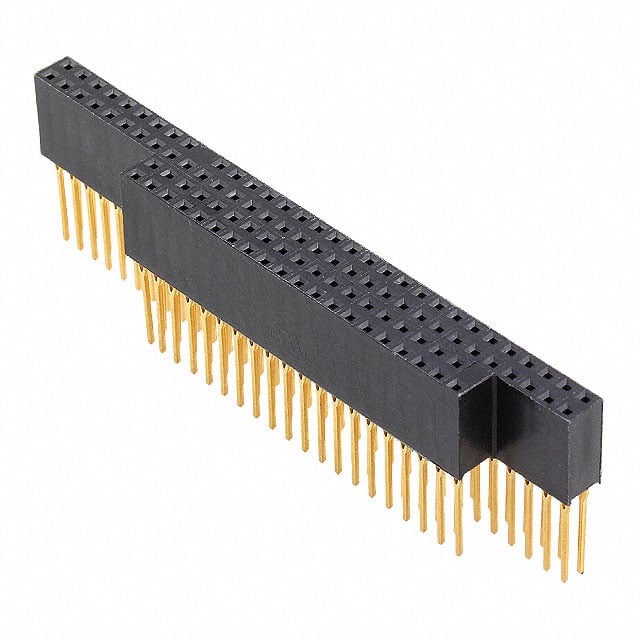

TE Connectivity AMP Connectors 1375795-1


AMPMODU Series Stackthrough, Keyed (PC/104) Press-Fit, Long Post Gold Black 15.0μin 0.38μm 104 Positions Pitch: 0.100 2.54mm -55°C~105°C Bulk Through Hole

1375795-1 Overview


Packaging for this item is Stackthrough, Keyed (PC/104).There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the AMPMODU Series.Moreover, there are a number of other features, including POLARZIED, to name just a few.Press Fit, Through Hole is used to mount the part.In this case, the device operates at -55°C~105°C Operating Temperature.

1375795-1 Features


AMPMODU series


1375795-1 Applications


There are a lot of TE Connectivity AMP Connectors
1375795-1 Backplane Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
