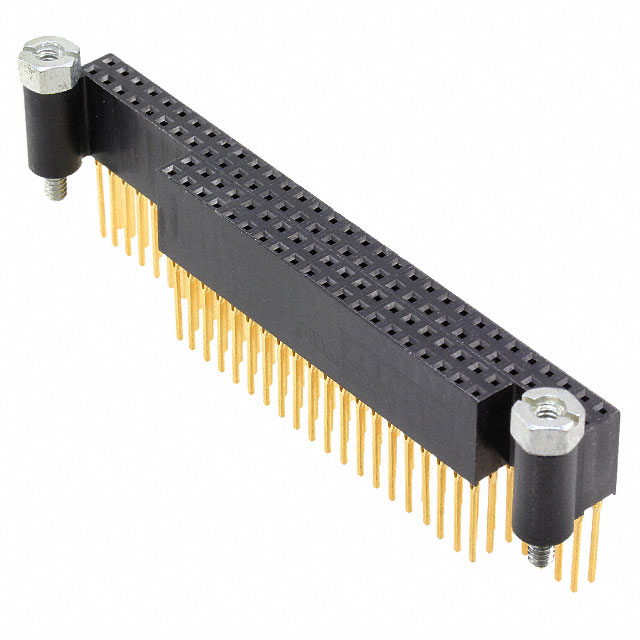

1375793-2
Or copy the link below:
- Mfr.Part #
- 1375793-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN STKTHRU PC/104 104POS PCB
- Stock
- 13
- In Stock ：
- 13
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Dielectric Withstanding Voltage :
- 500VAC V
- RoHS Status :
- RoHS Compliant
- Total Number of Contacts :
- 104
- Option :
- GENERAL PURPOSE
- Contact Pattern :
- RECTANGULAR
- Number of Rows :
- 4
- PCB Contact Pattern :
- RECTANGULAR
- DIN Conformance :
- No
- Series :
- AMPMODU
- Filter Feature :
- No
- Contact Style :
- SQ PIN-SKT
- Number of Conductors :
- ONE
- Factory Lead Time :
- 28 Weeks
- Gender :
- Receptacle
- Contact Finish :
- Gold
- Current Rating :
- 3A
- Published :
- 2008
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Durability :
- 50 Cycles
- Contact Material :
- Bronze
- Packaging :
- Bulk
- Insulation Resistance :
- 1GOhm
- Reliability :
- COMMERCIAL
- Lead Length :
- 12.2682mm
- Plating Thickness :
- 15μin
- Keyed :
- No
- Connector Style :
- PC/104
- Connector Type :
- Stackthrough, Unkeyed (PC/104)
- Pitch :
- 0.100 2.54mm
- Mount :
- Press Fit, Through Hole
- MIL Conformance :
- No
- Body Breadth :
- 0.39 inch
- Number of Positions :
- 104
- Pbfree Code :
- yes
- Color :
- Black
- Operating Temperature :
- -55°C~105°C
- Polarization Key :
- ENDS
- Termination :
- Press-Fit, Long Post
- Orientation :
- Straight
- Width :
- 9.91mm
- IEC Conformance :
- No
- Approval Agency :
- cULus
- Mixed Contacts :
- No
- Number of Positions Loaded :
- All
- Feature :
- Screwlocks (2)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 81.5mm
- Mounting Type :
- Through Hole
- Housing Material :
- Nylon
- Number Of PCB Rows :
- 4
- ELV :
- Compliant
- Reference Standard :
- UL
- ECCN Code :
- EAR99
- Contact Resistance :
- 10MOhm
- Rated Current (Signal) :
- 2A
- Datasheets
- 1375793-2
AMPMODU Series Stackthrough, Unkeyed (PC/104) Press-Fit, Long Post Gold Black 15.0μin 0.38μm 104 Positions Pitch: 0.100 2.54mm -55°C~105°C Bulk Through Hole
1375793-2 Overview
Packaging for this item is Stackthrough, Unkeyed (PC/104).There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the AMPMODU Series.In many ways, its Screwlocks (2) feature makes it more powerful.Press Fit, Through Hole is used to mount the part.In this case, the device operates at -55°C~105°C Operating Temperature.
1375793-2 Features
AMPMODU series
1375793-2 Applications
There are a lot of TE Connectivity AMP Connectors
1375793-2 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
