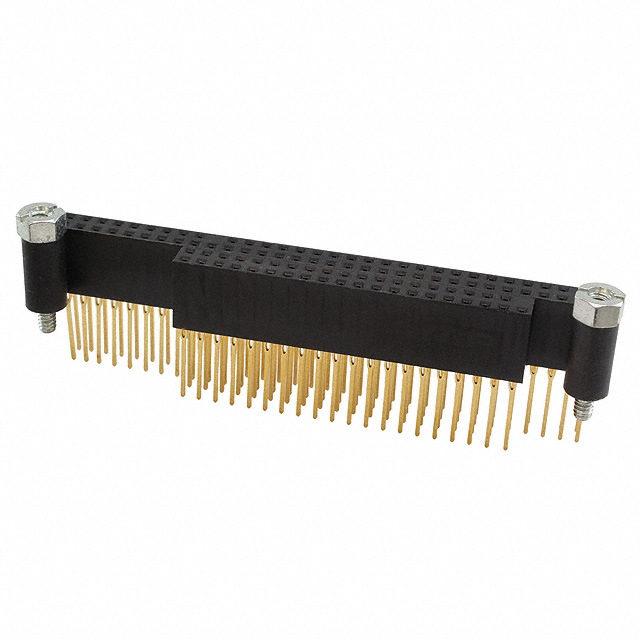

1375793-1
Or copy the link below:
- Mfr.Part #
- 1375793-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN STKTHRU PC/104 104POS PCB
- Stock
- 27,204
- In Stock ：
- 27,204
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- MIL Conformance :
- No
- Number of Rows :
- 4
- Lead Length :
- 12.2682mm
- Additional Feature :
- POLARIZED
- Packaging :
- Bulk
- DIN Conformance :
- No
- Number of Conductors :
- ONE
- Gender :
- Receptacle
- Total Number of Contacts :
- 102
- Insulation Resistance :
- 1GOhm
- Lead Free :
- Lead Free
- ECCN Code :
- EAR99
- Contact Style :
- SQ PIN-SKT
- Reliability :
- COMMERCIAL
- Option :
- GENERAL PURPOSE
- Contact Pattern :
- RECTANGULAR
- Series :
- AMPMODU
- Operating Temperature :
- -55°C~105°C
- Number of Positions :
- 104
- Pbfree Code :
- yes
- Housing Material :
- Nylon
- Plating Thickness :
- 15μin
- Number Of PCB Rows :
- 4
- Feature :
- Screwlocks (2)
- ELV :
- Compliant
- Radiation Hardening :
- No
- Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Termination :
- Press-Fit, Long Post
- Length :
- 81.5mm
- RoHS Status :
- RoHS Compliant
- PCB Contact Pattern :
- RECTANGULAR
- Mating Contact Row Spacing :
- 0.1 inch
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 28 Weeks
- Filter Feature :
- No
- Mixed Contacts :
- No
- Reference Standard :
- UL, CSA
- Connector Type :
- Stackthrough, Keyed (PC/104)
- Orientation :
- Straight
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- Connector Style :
- PC/104
- Dielectric Withstanding Voltage :
- 500VAC V
- Pitch :
- 0.100 2.54mm
- Number of Positions Loaded :
- 102
- Polarization Key :
- ENDS
- IEC Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 10MOhm
- Mounting Type :
- Through Hole
- Keyed :
- yes
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Published :
- 2008
- Mount :
- Press Fit, Through Hole
- Durability :
- 50 Cycles
- Current Rating :
- 3A
- Contact Material :
- Bronze
- Approval Agency :
- cULus
- Insertion Force-Max :
- 1.39 N
- Width :
- 9.91mm
- Datasheets
- 1375793-1
AMPMODU Series Stackthrough, Keyed (PC/104) Press-Fit, Long Post Gold Black 15.0μin 0.38μm 104 Positions Pitch: 0.100 2.54mm -55°C~105°C Bulk Through Hole
1375793-1 Overview
Packaging is in the form of Stackthrough, Keyed (PC/104).This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMPMODU Series.Other features include POLARIZED, to name just a few.Several benefits come from the Screwlocks (2) feature.There is a mounting hole at Press Fit, Through Hole.Devices operate at -55°C~105°C operating temperatures.
1375793-1 Features
AMPMODU series
1375793-1 Applications
There are a lot of TE Connectivity AMP Connectors
1375793-1 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
