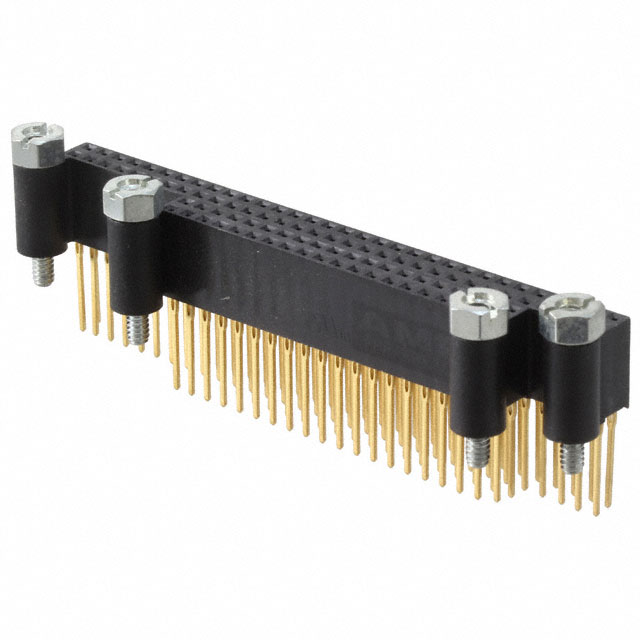

1375791-2
Or copy the link below:
- Mfr.Part #
- 1375791-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN STKTHRU PC/104 104POS PCB
- Stock
- 252
- In Stock ：
- 252
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Mixed Contacts :
- No
- Insertion Force-Max :
- 1.39 N
- Housing Material :
- Nylon
- Plating Thickness :
- 15μin
- DIN Conformance :
- No
- Number of Conductors :
- ONE
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 4
- Pitch :
- 0.100 2.54mm
- Number of Positions Loaded :
- All
- PCB Contact Pattern :
- RECTANGULAR
- Contact Pattern :
- RECTANGULAR
- Total Number of Contacts :
- 104
- Termination :
- Press-Fit, Long Post
- Pbfree Code :
- yes
- Option :
- GENERAL PURPOSE
- Keyed :
- No
- Length :
- 81.5mm
- Contact Style :
- SQ PIN-SKT
- Rated Current (Signal) :
- 2A
- Mounting Type :
- Through Hole
- Reference Standard :
- UL, CSA
- Lead Free :
- Lead Free
- Contact Material :
- Bronze
- Polarization Key :
- ENDS
- Connector Type :
- Stackthrough, Unkeyed (PC/104)
- Durability :
- 50 Cycles
- MIL Conformance :
- No
- Width :
- 9.91mm
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Style :
- PC/104
- ECCN Code :
- EAR99
- Gender :
- Receptacle
- Additional Feature :
- WITH PRESS-FIT TERMINALS
- Material Flammability Rating :
- UL94 V-0
- Color :
- Black
- Contact Finish :
- Gold
- Mount :
- Press Fit, Through Hole
- Lead Length :
- 12.2682mm
- Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Body Breadth :
- 0.39 inch
- Number Of PCB Rows :
- 4
- Series :
- AMPMODU
- Feature :
- Screwlocks (4)
- Factory Lead Time :
- 42 Weeks
- Number of Positions :
- 104
- Contact Resistance :
- 30mOhm
- Published :
- 2007
- Filter Feature :
- No
- Operating Temperature :
- -55°C~105°C
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 1GOhm
- Packaging :
- Bulk
- Dielectric Withstanding Voltage :
- 500VAC V
- Body Depth :
- 0.6 inch
- ELV :
- Compliant
- Mating Contact Row Spacing :
- 0.1 inch
- Datasheets
- 1375791-2
AMPMODU Series Stackthrough, Unkeyed (PC/104) Press-Fit, Long Post Gold Black 15.0μin 0.38μm 104 Positions Pitch: 0.100 2.54mm -55°C~105°C Bulk Through Hole
1375791-2 Overview
A Stackthrough, Unkeyed (PC/104) packaging is included.It's mounted Through Hole.We use a Bulk case to package the product.It's from the AMPMODU Series.There are also other features like WITH PRESS-FIT TERMINALS, to name a few.In many ways, its Screwlocks (4) feature makes it more powerful.It's mounted by Press Fit, Through Hole.-55°C~105°C Operating Temperature is what the device runs at.
1375791-2 Features
AMPMODU series
1375791-2 Applications
There are a lot of TE Connectivity AMP Connectors
1375791-2 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
